Gottlieb Pinball Repair Kits
Gottlieb logo

Please Click Here if you do not see a menu frame on the left

For you do-it-yourself types - we have the following Gottlieb repair kits.

Note: Pictures may not reflect actual components you will receive. Physical characteristics may be different. Also, due to the nature of electronic components, we can not accept returns on any repair kit ordered. In other words, all sales are final.

We're assuming you have the knowledge and skills needed to install these kits, and that you are aware of the risks and dangers associated with working on electrical circuits. If you don't have these skills, please seek a professional to help you.

Big Daddy Enterprises will assume NO responsibility for any property damage and/or injury to yourself or others that may result from the use or misuse of anything you purchase from us, including services. Sending us an order implies that you understand and agree with this disclaimer.

Please, don't forget to order the kits by name, and if you need more information or you're not sure which kit you need, just . If you want to use PayPal to process and pay for your order, just use the PayPal shopping cart buttons provided with each item.

MISC


Gottlieb System 1 Driver board

Gottlieb System 1 Power Supply


Gottlieb System 1 Sound board s





Gottlieb System 80 Sound boards





PROCESSORS AND MEMORY
System-80 MPU Kit System-80 Deluxe MPU Kit

Ordering Information

International buyers please read this

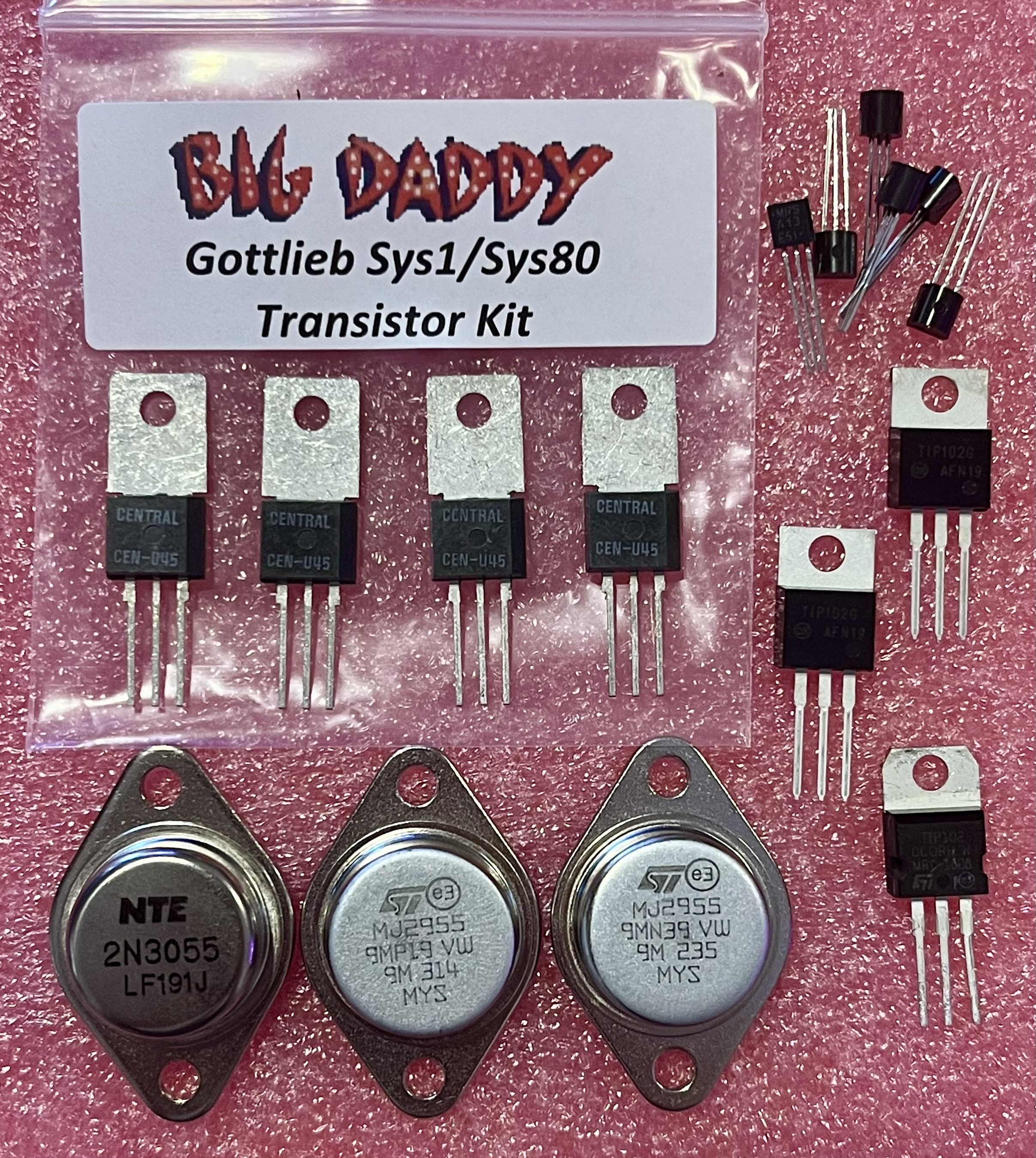

Gottlieb Transistor Kit

Parts shown in picture may be replaced with a compatible substitute



Here's a nice collection of transistors used on both Gottlieb System-1 and System-80 solenoid/lamp drivers. Have a few spares around just in case!

  • 2 ea. 2N5880 Transistor
  • 1 ea. 2N3055 Transistor
  • 4 ea. CEN-U45 Transistor (sub for MPS-U45, picture shows 5)
  • 3 ea. 2N6043 Transistor
  • 6 ea. MPS-A13 Transistor

$22.00 each
Gottlieb Transistor Kit

Out Of Stock

TOP  BOTTOM

Gottlieb Pop Bumper Driver Kit

Parts shown in picture may be replaced with a compatible substitute



Includes all the parts you need to completely rebuild a Gottlieb System-80 Pop Bumper Driver Board, including upgraded parts.

Special: Buy 4 of these kits and get a 5th kit FREE

  • 1 ea. 0.01uF 50V Poly-Metal Capacitor
  • 1 ea. 47uF, 16V Electrolytic Capacitor
  • 1 ea. 4.7uF, 20V Tantalum Capacitor
  • 1 ea. 1uF, 50V Non-Polarized Capacitor
  • 1 ea. SN74121N Multi-Vibrator IC
  • 1 ea. SN7416N Hex Inverter IC
  • 1 ea. 1N4148 Diode
  • 1 ea. 2N6059 Transistor (substitute for PMD10K60)
  • 1 ea. 10K Ohm, 1/4 Watt Resistor
  • 1 ea. 12K Ohm, 1/4 Watt Resistor
  • 1 ea. 220 Ohm, 1/4 Watt Resistor
  • 2 ea. DIP-14 Machined IC Socket

Here's the cheat-sheet for this kit: gottlieb-pbdb.pdf

$11.00 each
Pop Bumper
Driver Kit
$45.00 5-Pack
Pop Bumper
Driver Kit

TOP  BOTTOM



Parts shown in picture may be replaced with a compatible substitute



This is a minimal collection of parts that will fix a design flaw on the early Gottlieb pop bumper boards, plus makes the pop bumpers act quicker and more stable. Includes enough for (4) pop bumper boards.


  • 4 ea. 47uF, 16V Electrolytic Capacitor
  • 4 ea. 4.7uF, 20V Tantalum Capacitor
  • 4 ea. 1uF, 50V Non-Polarized Capacitor
  • 4 ea. 10K Ohm, 1/4 Watt Resistor

$4.50 Each
Pop Bumper Driver
Mandatory Fix Kit
4-Pack

TOP  BOTTOM

Gottlieb Pop Bumper Driver Connector Kit

Parts shown in picture may be replaced with a compatible substitute





Includes a 6-pin connector housing with locking ramps, a locking 6-pin 0.156" header strip, and plenty of crimp-on connector pins. Since most (all?) pop bumper driver boards are installed upside down under the playfield, it's important that you use locking connectors. This kit will do the trick!

  • 1 ea. Molex 6-pin 0.156" Connector Housing w/ Locking Ramps
  • 1 ea. Molex 0.156" Connector Key
  • 1 ea. Molex 6-pin 0.156" Locking Header Strip
  • 3 ea. Molex 0.156" Crimp-on Connector Pins, 22-26 AWG
  • 3 ea. Molex 0.156" Crimp-on Connector Pins, 18-20 AWG
  • 3 ea. Molex 0.156" Crimp-on Trifurcon Connector Pins, 22-26 AWG
  • 3 ea. Molex 0.156" Crimp-on Trifurcon Connector Pins, 18-20 AWG

Need Crimpers?

$1.80 Each
Pop Bumper Driver
Connector Kit
Out Of Stock 09/29/16
$7.50 5-Pack
Pop Bumper Driver
Connector Kit
Out Of Stock 09/29/16

TOP  BOTTOM

Gottlieb System-1 Driver Kit #1

Parts shown in picture may be replaced with a compatible substitute





Includes a collection of transistors used on all Gottlieb System-1 Driver Modules, and some replacement coil diodes

  • 5 ea. CEN-U45 Transistor (sub for MPS-U45)
  • 20 ea. MPS-A13 Transistor
  • 5 ea. 2N6043 Transistor
  • 1 ea. 2N3055 Transistor
  • 1 ea. 2N5880/MJ2955 Playfield Transistor
  • 20 ea. 1N4004 Diode

$24.00 each
System-1 Driver
Kit #1

5 in stock 11/17/16

TOP  BOTTOM

Gottlieb System-1 Driver Kit #2

Parts shown in picture may be replaced with a compatible substitute



Includes a collection of integrated circuits, diodes, and resistors used on all System-1 Driver Modules



  • 2 ea. SN74175N Quad Flip-Flop IC
  • 2 ea. DIP-16 Machined IC Socket
  • 10 ea. 1N4148 Diode
  • 10 ea. 1K Ohm, 1/4 Watt Resistor
  • 1 ea. 13 Ohm, 1 Watt Resistor

$7.00 each
System-1 Driver
Kit #2

TOP  BOTTOM

Combines Gottlieb System-1 Driver Kits #1 and #2 for a savings of $3.00.



  • 5 ea. CEN-U45 Transistor (sub for MPS-U45)
  • 20 ea. MPS-A13 Transistor
  • 5 ea. 2N6043 Transistor
  • 1 ea. 2N3055 Transistor
  • 1 ea. 2N5880/MJ2955 Playfield Transistor
  • 20 ea. 1N4004 Diode
  • 2 ea. SN74175N Quad Flip-Flop IC
  • 2 ea. DIP-16 Machined IC Socket
  • 10 ea. 1N4148 Diode
  • 10 ea. 1K Ohm, 1/4 Watt Resistor
  • 1 ea. 13 Ohm, 1 Watt Resistor

$29.00 each
System-1 Driver
Combo Kit

5 in stock 11/17/16

TOP  BOTTOM

Gottlieb System-1 Power Supply

Parts shown in picture may be replaced with a compatible substitute
Contains most of the critical parts located on the System-1 Power Supply Board

  • 1 ea. TIP-31C Transistor (sub for SW4F013)
  • 1 ea. 2N6059 Transistor (sub for PMD12K40)
  • 1 ea. 2N3416 Transistor
  • 1 ea. 723H Regulator
  • 1 ea. LM7912 Regulator
  • 1 ea. MPS-A43 Transistor
  • 6 ea. 1N4004 Rectifier (sub for 1N4002)
  • 3 ea. 1N4148 Diode (sub for 1N914)
  • 2 ea. MR751 Rectifier
  • 2 ea. T106 SCR (sub for S0306)
  • 1 ea. 1N4753A Zener Diode
  • 1 ea. 1N4742A Zener Diode
  • 1 ea. 1N4746A Zener Diode
  • 1 ea. 1N4738A Zener Diode
  • 1 ea. 1N4734A Zener Diode
  • 1 ea. 1N4743A Zener Diode
  • 2 ea. 1K Ohm 1/2 Watt Trimmer Pot
Include a Mica Insulator Kit for $2.00 more or a Deluxe Mica Insulator Kit for $5.00 more with the purchase of this kit.

$20.50 each
System-1 Power
Supply Kit
$2.00 extra
Mica
Insulator Kit
$5.00 extra
Deluxe Mica
Insulator Kit

TOP  BOTTOM

Gottlieb System-1 Tone Board Repair Kit

Parts shown in picture may be replaced with a compatible substitute


Contains all of the electrolytic caps and more on a Gottlieb System 1 electronic tone board,
also known as a chime board or "Synthesized Tones Board" on the schematics.
Found in Close Encounters, Dragon, Charlie's Angels, Solar Ride, Countdown and Pinball Pool.
This will not fix problems with the diodes, other caps, resistors or 555 timers.
Common symptoms are no sound, weak sound or static in your sound.
  • 1 ea. 220uf/25V radial capacitor (C9)
  • 1 ea. 470uf/50V radial capacitor (C10)
  • 1 ea. 22uf/50V radial capacitor (factory may be 35V) (C12)
  • 1 ea. TIP31C (Q1, Sub for TIP31B)
  • 1 ea LM380 Audio Amplifier IC
  • 1 ea DIP-14 Machined IC Socket
  • 560ohm 2 Watt resistor?

$5.00 each
System-1 Tone Board
Repair Kit

TOP  BOTTOM


Gottlieb System-1 Sound Board Repair Kit

Parts shown in picture may be replaced with a compatible substitute


Contains all of the electrolytic caps and more on a Gottlieb System 1 electronic sound board
found in Totem, Hulk, Genie, Buck Rogers, Torch, Roller Disco and Asteroid Annie.
This will not fix a corrupted IC problem or a problem with diodes, resistors other caps or voltage.
Voltage regulator is a LM309K or LM7805CK available here
This board used a VERY hard to find 6503 processor and a 6530 RAM/ROM I/O Timer Array chip specific to Gottlieb boards.
Common symptoms are no sound, weak sound or static in your sound.
  • 1 ea. 1000uf/25V axial capacitor (C6)
  • 2 ea. 470/35V radial capacitor (C8 & C9)
  • 1 ea. 47/50V radial capacitor (factory may be 35V) (C7)
  • 1 ea. 10uf/100V axial capacitor (factory may be 35V) (C19)
  • 1 ea 0.047/25V ceramic disk capacitor (C15)

$3.50 each
System-1 Sound Board
Repair Kit

TOP  BOTTOM


Gottlieb System-80 Sound Board #1 repair kit

Parts shown in picture may be replaced with a compatible substitute

WORK IN PROGRESS
Contains all of the electrolytic caps and more on a Gottlieb System 1 electronic sound board
found in Totem, Hulk, Genie, Buck Rogers, Torch, Roller Disco and Asteroid Annie.
This will not fix a corrupted IC problem or voltage problem.
Common symptoms are no sound, weak sound or static in your sound.
  • 1 ea. 1000uf/25V axial capacitor (C6)
  • 2 ea. 470/35V radial capacitor (C8 & C9)
  • 1 ea. 47/50V radial capacitor (factory may be 35V) (C7)
  • 1 ea. 10uf/100V axial capacitor (factory may be 35V) (C19)
  • 1 ea 0.047/25V ceramic disk capacitor (C15)

$0.00 each
System-80 Sound Board
Capacitor Kit

TOP  BOTTOM


Gottlieb System-80 Sound board #2 repair kit

Parts shown in picture may be replaced with a compatible substitute

WORK IN PROGRESS
Contains all of the electrolytic caps and more on a Gottlieb System 1 electronic sound board
found in Totem, Hulk, Genie, Buck Rogers, Torch, Roller Disco and Asteroid Annie.
This will not fix a corrupted IC problem or voltage problem.
Common symptoms are no sound, weak sound or static in your sound.
  • 1 ea. 1000uf/25V axial capacitor (C6)
  • 2 ea. 470/35V radial capacitor (C8 & C9)
  • 1 ea. 47/50V radial capacitor (factory may be 35V) (C7)
  • 1 ea. 10uf/100V axial capacitor (factory may be 35V) (C19)
  • 1 ea 0.047/25V ceramic disk capacitor (C15)

$0.00 each
System-80 Sound Board
Capacitor Kit


Gottlieb System-1 Power Supply Capacitor Kit

Parts shown in picture may be replaced with a compatible substitute





Contains new quality capacitors for the Gottlieb System 1 Power Supply Board.
Make your power supply more stable w/ a fresh set of electrolytics!

  • 1 ea. 3,300uF, 35V Axial Electrolytic Capacitor (C1 - substitute for 2,900uF)
  • 1 ea. 470uF, 10V Radial Electrolytic Capacitor (C3)
  • 1 ea. 1000uF, 35V Radial Electrolytic Capacitor (C4)
  • 1 ea. 47uF, 50V Radial Electrolytic Capacitor (C5)
  • 1 ea. 220uF, 160V Axial Electrolytic Capacitor (C6)
  • 1 ea. 10uF, 100V Radial Electrolytic Capacitor (C8)

$16.00 each
System-1 Power
Supply Capacitors

TOP  BOTTOM

Combines the System-1 Power Supply and Capacitor Kits for a savings of $3.00

  • 1 ea. TIP-31C Transistor (sub for SW4F013)
  • 1 ea. 2N6059 Transistor (sub for PMD12K40)
  • 1 ea. 2N3416 Transistor
  • 1 ea. 723H Regulator
  • 1 ea. LM7912 Regulator
  • 1 ea. MPS-A43 Transistor
  • 6 ea. 1N4004 Rectifier (sub for 1N4002)
  • 3 ea. 1N4148 Diode (sub for 1N914)
  • 2 ea. MR751 Rectifier
  • 2 ea. T106 SCR (sub for S0306)
  • 1 ea. 1N4753A Zener Diode
  • 1 ea. 1N4742A Zener Diode
  • 1 ea. 1N4746A Zener Diode
  • 1 ea. 1N4738A Zener Diode
  • 1 ea. 1N4734A Zener Diode
  • 1 ea. 1N4743A Zener Diode
  • 2 ea. 1K Ohm 1/2 Watt Trimmer Pot
  • 1 ea. 3,300uF, 50V Axial Electrolytic Capacitor (C1 - substitute for 2,900uF)
  • 1 ea. 470uF, 10V Radial Electrolytic Capacitor (C3)
  • 1 ea. 1000uF, 35V Radial Electrolytic Capacitor (C4)
  • 1 ea. 47uF, 50V Radial Electrolytic Capacitor (C5)
  • 1 ea. 200uF, 150V Axial Electrolytic Capacitor (C6)
  • 1 ea. 10uF, 100V Radial Electrolytic Capacitor (C8)
Include a Mica Insulator Kit for $2.00 more or a Deluxe Mica Insulator Kit for $5.00 more with the purchase of this kit.

$33.00 each
System-1 Power
Supply Combo
$2.00 extra
Mica
Insulator Kit
$5.00 extra
Deluxe Mica
Insulator Kit

TOP  BOTTOM

Gottlieb System-1 Fuse Kit

Parts shown in picture may be replaced with a compatible substitute



This kit provides 2 sets of fuses typically found on most Gottlieb System-1 solid state pinball machines. These fuses are all quality Bussman/Cooper or Littelfuse fuses.



  • 4 ea. 7-1/2 Amp fast blow
  • 2 ea. 1/4 Amp slow blow
  • 2 ea. 1/2 Amp slow blow
  • 4 ea. 1 Amp slow blow
  • 4 ea. 2 Amp slow blow
  • 6 ea. 5 Amp slow blow

$12.00 each
System-1 Fuse Kit

TOP  BOTTOM

Gottlieb System-80 Auxiliary Lamp Driver Kit #1

Parts shown in picture may be replaced with a compatible substitute



There are muliple types of Aux lamp driver boards, some with CEN-U45s, some with 2N6043s.
The boards are not marked to my knowledge. and the below kit includes the parts for the version with 2N6043s.
Please check your board before purchasing

  • 10 ea. 2N6043 (not CEN-U45 as shown)
  • 1 ea. 7400 2-Input Quad NAND
  • 2 ea. 7405 Hex Inverter
  • 1 ea. 74LS90 Decade Counter
  • 1 ea. 7442 Decoder
  • 1 ea. 555 Timer
  • 1 ea. 47uF 16 Volt Radial Electrolytic Capacitor (Factory may be 10V)
  • 2 ea. 0.01uF 50 Volt Poly-Metal Capacitor
  • 1 ea. 0.1uF 50 Volt Poly-Metal Capacitor
  • 1 ea. 8-Pin Machined Socket
  • 4 ea. 14-Pin Machined Socket
  • 1 ea. 16-Pin Machined Socket

$26.00 each
System-80
Aux Lamp Driver Kit #1

Out of Stock

TOP  BOTTOM

Gottlieb System-80 Driver Kit #1

Parts shown in picture may be replaced with a compatible substitute



Here's a collection of transistors used on all Gottlieb System-80 Driver modules, some coil diodes, and some pull-up resistors too.

  • 4 ea. CEN-U45 Transistor (sub for MPS-U45)
  • 10 ea. MPS-A13 Transistor
  • 3 ea. 2N6043 Transistor
  • 3 ea. 2N3055 Transistor
  • 2 ea. MJ2955 Playfield Transistor (Sub for 2N5880)
  • 20 ea. 1N4004 Diode
  • 10 ea. 4.7K Ohm, 1/4 Watt Resistor

$26.00 each
System-80
Driver Kit #1

Out of Stock

TOP  BOTTOM

Gottlieb System-80 Driver Kit #2

Parts shown in picture may be replaced with a compatible substitute



This kit includes a collection of ICs, diodes, and resistors used on all Gottlieb System-80 Driver Modules

  • 2 ea. SN74175N Quad Flip-Flop IC
  • 1 ea. SN7404N Hex Inverter IC
  • 2 ea. DIP-16 Machined Socket
  • 1 ea. DIP-14 Machine Socket
  • 10 ea. 1N4148 Diode
  • 10 ea. 1K Ohm, 1/4 Watt Resistor
  • 3 ea. 9.1 Ohm, 1 Watt Resistor

$9.00 each
System-80
Driver Kit #2

TOP  BOTTOM



Combines Gottlieb System-80 Driver Kits #1 and #2 for a savings of $3.00

  • 5 ea. CEN-U45 Transistor (sub for MPS-U45)
  • 10 ea. MPS-A13 Transistor
  • 3 ea. 2N6043 Transistor
  • 3 ea. 2N3055 Transistor
  • 3 ea. 2N5880/MJ2955 Playfield Transistor
  • 20 ea. 1N4004 Diode
  • 10 ea. 4.7K Ohm, 1/4 Watt Resistor
  • 2 ea. SN74175N Quad Flip-Flop IC
  • 1 ea. SN7404N Hex Inverter IC
  • 2 ea. DIP-16 Machined Socket
  • 1 ea. DIP-14 Machine Socket
  • 10 ea. 1N4148 Diode
  • 10 ea. 1K Ohm, 1/4 Watt Resistor
  • 3 ea. 9.1 Ohm, 1 Watt Resistor

$32.00 each
System-80
Driver Combo Kit

Out of Stock

TOP  BOTTOM

Gottlieb System-80 Power Supply Kit #1

Parts shown in picture may be replaced with a compatible substitute



Includes all the Power Supply components located in the lower cabinet of most System-80 machines. Available without capacitors

8/29/2016: Please note I'm throwing this out of stock while I research and revise. Not being heavy on Gottlieb games I'm just now seeing the kit as it exists may be overkill for many, those that have only 1 cap in the cabinet and 3 bridges. To date games that have two caps I've spotted as Haunted House, Black Hole, Dare Devil, Volcano. Games with just one and 3 bridges, James Bond. Your help identifying is appreciated, send me a note!


  • 4 ea. Bridge Rectifier, 200 Volt (or better), 35 Amp
  • 1 ea. 100uF, 50V Axial Electrolytic Capacitor
  • 1 ea. 1.5K Ohm, 2 Watt Resistor
  • 1 ea. 0.33 Ohm, 5 Watt Resistor
  • 1 ea. 4,700 uF, 50V Computer Grade Capacitor with ring lugs & screws (not included in Half Kit)
  • 1 ea. 12,000 uF, 30V Computer Grade Capacitor with ring lugs & screws (not included in Half Kit)

$25.00 each
System-80
Power Supply Kit #1

Out of stock while I revise
See above

$9.00 each
System-80
Power Supply Half Kit #1

Out of stock while I revise
See above



TOP  BOTTOM

Gottlieb System-80 Power Supply Kit #2

Parts shown in picture may be replaced with a compatible substitute



Includes many components for the power supply board found on most System-80 machines.

  • 1 ea. TIP31C Transistor (sub for SW4F013)
  • 1 ea. 2N6059 Transistor (sub for PMD10K40)
  • 1 ea. 2N5550 Transistor
  • 1 ea. LM723CN Regulator IC
  • 1 ea. DIP-14 Machine Socket
  • 4 ea. 1N4004 Diode
  • 1 ea. 47uF 100V Axial Electrolytic Capacitor
  • 1 ea. 470uF 10V Radial Electrolytic Capacitor
  • 1 ea. 470uF 100V Axial Electrolytic Capacitor
  • 1 ea. 1N4734A Zener Diode
  • 1 ea. 1N4738A Zener Diode (CR7)*
  • 1 ea. 1N4746A Zener Diode
  • 1 ea. 1N4759A Zener Diode
  • 2 ea. LED  (one red/one green)
  • 1 ea. T106 SCR (sub for S107)
  • 1 ea. 500 Ohm Trimmer Pot
  • 1 ea. 12K Ohm, 1/2 Watt Resistor
  • 1 ea. 680 Ohm, 1/2 Watt Resistor (R10)*
Include a Thermal Insulator $0.50 more or a Deluxe Mica Insulator Kit for $3.00 more.

*Note* The parts marked with an asterisk are upgraded substitutes for the original parts.

$14.50 each
System-80 Power
Supply Kit #2

Out of Stock
$0.50 extra
Thermal Insulator
$3.00 extra
Deluxe Mica
Insulator Kit

TOP  BOTTOM

Gottlieb System-80 P/S Filter Kit

Parts shown in picture may be replaced with a compatible substitute



Includes both large filter capacitors for the power supply in the cabinet. These are quality Sprague computer grade capacitors, complete with crimp-on terminals and screws.

  • 1 ea. 12,000uF 25V Computer-Grade Electrolytic Capacitor
  • 1 ea. 4,800uF 50V Computer-Grade Electrolytic Capacitor
  • 4 ea. Ring Terminal, #10 Stud, 16-14 AWG

$19.00 each
System-80 Power
Supply Filter Kit

Out of Stock

TOP  BOTTOM

Gottlieb System-80 Filter Mounting Kit

Parts shown in picture may be replaced with a compatible substitute



Includes two mounting brackets for the computer-grade filter capacitors sold above.

Price:
$4.00 for a pair if purchased with System-80 Power Supply Kit #1 or System-80 P/S Filter Kit
$2.25 each if purchased separately

  • 2 ea. Capacitor Mounting Bracket

$2.25 each
Filter Mounting Rings
If purchased separately
$4.00 a pair
Filter Mounting Rings
If purchased with filter capacitors
OR Gottlieb P/S Kit #1

TOP  BOTTOM

Gottlieb System-80 Power Supply Misc.

Parts shown in picture may be replaced with a compatible substitute



If you have new filters but forgot the other parts from the cabinet power supply, here you go.

Price: $5.00 each

  • 1 ea. 100uF 50V Axial Electrolytic Capacitor
  • 1 ea. 1.5K Ohm, 2 Watt Resistor
  • 1 ea. 0.33 Ohm, 5 Watt Resistor

$5.00 each
System-80 Power
Supply Misc.

TOP  BOTTOM

Gottlieb System-80 Resistor Kit

Parts shown in picture may be replaced with a compatible substitute



Includes all of the resistors located on the System-80 Power Supply Board

Price:
$4.00 each if purchased with any other System-80 kit (some values may be redundant)
$6.00 if purchased separately

  • 1 ea. 1.3K Ohm, 5 Watt Resistor
  • 1 ea. .33 Ohm, 5 Watt Resistor
  • 1 ea. 30 Ohm, 2 Watt Resistor
  • 1 ea. 33 Ohm, 1 Watt Resistor
  • 1 ea. 12K Ohm, 1/2 Watt Resistor
  • 1 ea. 10K Ohm, 1/2 Watt Resistor
  • 1 ea. 680 Ohm, 1/2 Watt Resistor (R10)*
  • 1 ea. 620 Ohm, 1/2 Watt Resistor
  • 1 ea. 510 Ohm, 1/4 Watt Resistor
  • 1 ea. 1K Ohm, 1/4 Watt Resistor
  • 1 ea. 3.9K Ohm, 1/4 Watt Resistor
  • 1 ea. 10K Ohm, 1/4 Watt Resistor
  • 1 ea. 2.2K Ohm, 1/4 Watt Resistor
  • 1 ea. 2K Ohm, 1/4 Watt Resistor
  • 1 ea. 100 Ohm, 1/4 Watt Resistor
  • 1 ea. 20 Ohm, 1/4 Watt Resistor
  • 1 ea. 180 Ohm, 1/4 Watt Resistor
*Note* The parts marked with an asterisk are substitutes for the original parts. If you use the 680 Ohm resistor for R10, you MUST also substitute CR7 with 1N4738.

$6.00 each
System-80 Resistors
If purchased separately
$4.00 each
System-80 Resistors
If purchased with any other System-80 kit

TOP  BOTTOM

Gottlieb System-80 Capacitor Kit

Parts shown in picture may be replaced with a compatible substitute



Includes all of the electrolytic capacitors located on the System-80 Power Supply Board

Price: $7.00 each

  • 1 ea. 470uF, 100V Axial Electrolytic Capacitor (C1)
  • 1 ea. 470uF, 10V Radial Electrolytic Capacitor (C4)
  • 1 ea. 47uF, 100V Axial Electrolytic Capacitor (C2)

$7.00 each

TOP  BOTTOM

Gottlieb System-80 Fuse Kit

Parts shown in picture may be replaced with a compatible substitute



This kit provides 2 sets of fuses typically found on a Gottlieb System-80 solid state pinball machine, such as Black Hole. These fuses are all quality Bussman/Cooper or Littelfuse fuses.

  • 4 ea. 10 Amp fast blow
  • 2 ea. 15 Amp fast blow
  • 2 ea. 1/4 Amp slow blow
  • 4 ea. 1/2 Amp slow blow
  • 10 ea. 1 Amp slow blow
  • 8 ea. 2 Amp slow blow
  • 8 ea. 2-1/2 Amp slow blow
  • 4 ea. 5 Amp slow blow
  • 2 ea. 6-1/4 Amp slow blow
  • 2 ea. 8 Amp slow blow

$17.00 each
System-80 Fuse Kit

TOP  BOTTOM

Gottlieb System-80 MPU Kit

Parts shown in picture may be replaced with a compatible substitute



This kit provides one Processor (6502) and three RIOT (6532) integrated circuits for your System-80 MPU. Also included are quality machined sockets.

Buy this kit and save over buying the individual items!

  • 1 ea. 6502 Processor (40-pin)
  • 3 ea. 6532 RIOT (40-pin)
  • 4 ea. 40-Pin Machined Socket

$34.50 Each
Gottlieb System-80
MPU Kit

TOP  BOTTOM

Gottlieb System-80 Deluxe MPU Kit

Parts shown in picture may be replaced with a compatible substitute



This kit provides one Processor (6502), three RIOT (6532), and one CMOS RAM (5101) integrated circuits for your System-80 MPU. Also included are quality machined sockets.

Buy this kit and save over buying the individual items!

  • 1 ea. 6502 Processor (40-pin)
  • 3 ea. 6532 RIOT (40-pin)
  • 1 ea. 5101 CMOS RAM (22-pin)
  • 4 ea. 40-Pin Machined Socket
  • 1 ea. 22-Pin Machined Socket

$42.00 Each
Gottlieb System-80
Deluxe MPU Kit

TOP  BOTTOM

Thank you for your order!

If you have any questions, just drop us an

Thanks for your business!


Pay me securely with any major credit card through PayPal!
Pay me securely with any major credit card through PayPal!


[Home]


Big Daddy title, background art work, and Bally logo are copyright by Williams Electronics Co.
Gottlieb logos are copyright by D. Gottlieb & Company
All other content is copyright by Big Daddy Enterprises 2011 and may not be borrowed, copied,
downloaded, or reproduced in any way whatsoever without prior written consent from Big Daddy Enterprises
