4000 CMOS series

Part	Item	Description
	IC-4001	4001 Quad 2-Input NOR DIP-14, CMOS, Spec $0.50 Each

---

Part	Item	Description
	IC-4011	4011 Quad 2-Input NAND DIP-14, CMOS, Spec $0.75 Each

---

Part	Item	Description
	IC-4028	4028 BCD Decoder DIP-16, CMOS, Spec $0.50 Each

---

Part	Item	Description
	IC-4030	4030 Quad Exclusive/OR Gate DIP-14, CMOS, Spec $0.40 Each

---

Part	Item	Description
	IC-4049	4049 Hex Inverter DIP-16, CMOS, Spec $0.45 Each

---

Part	Item	Description
	IC-4050	4050 Hex Buffer DIP-16, CMOS, Spec U5, 6, 7, & 8 on Bally AS-2518-14 Lamp Driver Modules $0.50 Each

---

Part	Item	Description
	IC-4053	4053 Triple 2-Channel Analog Multiplexer/Demultiplexer DIP-16, CMOS, Spec $0.50 Each

---

Part	Item	Description
	IC-4069	4069 Hex Inverter DIP-14, CMOS $0.50 Each

---

Part	Item	Description
	IC-4490	4490 (MC14490) Hex Contact Bounce Eliminator DIP-14, Spec $5.00 Each

---

Part	Item	Description
	IC-40175	40175 Quad D-Flip Flop DIP-16, CMOS, Spec $2.00 Each

See below under Memory for 4116 & 4164 RAM

---

4500 CMOS series

Part	Item	Description
	IC-4502	4502 Hex Inverter w/ Enable DIP-16, CMOS, Spec $1.00 Each

---

Part	Item	Description
	IC-4514	4514 4-to-16 Latching Decoder DIP-24, CMOS, Spec Used on Bally Lamp Driver modules Same as MC14514 $2.00 Each

---

Part	Item	Description
	IC-4528	4528 Dual Monostable Multivibrator aka CD4528 DIP-16, Spec U1 on Gottlieb System 1 MPU boards $0.95 Each

---

Part	Item	Description
	IC-4543	4543 BCD to 7-Segment Decoder DIP-16, CMOS, Spec U1 on Bally Display Modules Same as MC14543 $0.55 Each

---

7400 TTL series

Part	Item	Description
	IC-7400	7400 Quad 2-Input NAND DIP-14, TTL, Spec $1.00 Each

---

Part	Item	Description
	IC-74LS00	74LS00 Quad 2-Input NOR Gate DIP-14, TTL, Spec $0.75 Each

---

Part	Item	Description
	IC-7402	7402 Quad 2-Input NOR Gate DIP-14, TTL, Spec $0.75 Each

---

Part	Item	Description
	IC-74LS02	74LS02 Quad 2-Input NOR Gate DIP-14, TTL, Spec $0.50 Each

---

Part	Item	Description
	IC-7403	7403 Quad 2-Input NAND Gate Open Collector DIP-14, TTL, Spec $0.75 Each

---

Part	Item	Description
	IC-7404	7404 Hex Inverter, Open Collector DIP-14, TTL, Spec $0.75 Each

---

Part	Item	Description
	IC-74HC04	74HC04 Hex Inverter, Open Collector DIP-14, TTL, Spec $0.50 Each

---

Part	Item	Description
	IC-74LS04	74LS04 Hex Inverter, Open Collector DIP-14, TTL, Spec $0.50 Each

---

Part	Item	Description
	IC-7405	7405 Hex Inverter, Open Collector DIP-14, TTL, Spec $0.75 Each

---

Part	Item	Description
	IC-7406	7406 Hex Inverter, Open Collector DIP-14, TTL, Spec $0.50 Each

---

Part	Item	Description
	IC-7407	7407 Hex Buffer, Open Collector DIP-14, TTL, Spec $0.50 Each

---

Part	Item	Description
	IC-7408	7408 Quad 2-Input AND Gate DIP-14, TTL, Spec $0.75 Each

---

Part	Item	Description
	IC-7410	7410 Triple 3-Input NAND Gate DIP-14, TTL, Spec $0.75 Each

---

Part	Item	Description
	IC-74LS14	74LS14 Hex Inverter with Hysteresis DIP-14, TTL, Spec $0.75 Each

---

Part	Item	Description
	IC-7416	7416 Hex Inverter, Open Collector DIP-14, TTL, Spec $0.75 Each

---

Part	Item	Description
	IC-7417	7417 Hex Buffer, Open Collector DIP-14, TTL, Spec $0.75 Each

---

Part	Item	Description
	IC-74H21	74H21 Dual 4-Input AND Gate DIP-14, TTL, Spec $1.75 Each

---

Part	Item	Description
	IC-7430	7430 8-Input NAND Gate DIP-14, TTL, Spec $0.60 Each

---

Part	Item	Description
	IC-7432	7432 Quad 2-Input OR Gate DIP-14, TTL, Spec $1.00 Each

---

Part	Item	Description
	IC-7437	7437 Quad 2-Input NAND DIP-14, TTL, Spec Great substitute for MC3459L U15 on Bally -17, -35 & -133 MPU Modules $0.50 Each

---

Part	Item	Description
	IC-7442	7442 BCD to Decimal Converter DIP-16, TTL $1.50 Each

---

Part	Item	Description
	IC-7445	7445 BCD to Decimal Decoder/Driver DIP-16, TTL, Spec $1.50 Each

---

Part	Item	Description
	IC-7448	7448 BCD to 7 Segment Decoder/Driver Display Driver IC for Gottlieb Sys 80 MPU DIP-16, Spec $4.50 Each

---

Part	Item	Description
	IC-74LS48	74LS48 BCD to 7 Segment Decoder/Driver (sub for 7448) Display Driver IC for Gottlieb Sys 80 MPU DIP-16, Spec $2.50 Each

---

Part	Item	Description
	IC-74H53	74H53 Expandable 4 Wide/2 Input AND/OR/Invert Gate DIP-16, TTL, Spec $1.50 Each

---

Part	Item	Description
	IC-7474	7474 Dual D-Type Flip Flop Z2 on Gottlieb Sys 80 MPU DIP-16, TTL, Spec $0.30 Each

---

Part	Item	Description
	IC-74H74	74H74 Dual D-Type Flip Flop Z2 on Gottlieb Sys 80 MPU DIP-16, TTL, Spec $1.50 Each

---

Part	Item	Description
	IC-7475	7475 4-Bit Bi-Stable latch DIP-16, TTL, Spec $2.00 Each

---

Part	Item	Description
	IC-74LS90	74LS90 Decade Counter, Divide by 2 & 5 DIP-14, TTL, Spec Used on Gottlieb Aux Lamp Drivers $1.25 Each

---

Part	Item	Description
	IC-7492	7492 Divide by 12 Counter DIP-14, TTL, Spec $1.25 Each

---

Part	Item	Description
	IC-74107	74107 Dual JK Flip Flop with Clear DIP-14, TTL, Spec $0.80 Each

---

Part	Item	Description
	IC-74121	74121 1-Shot Multivibrator DIP-14, TTL, Spec Used on Gottlieb Pop Bumper Driver Boards $1.40 Each

---

Part	Item	Description
	IC-74122	74122 Retriggerable Monostable Multivibrator . DIP-14, TTL, Spec $1.00 Each

---

Part	Item	Description
	IC-74123	74123 Dual Retriggerable Monostable Multivibrator DIP-16, Spec $1.50 Each

---

Part	Item	Description
	IC-74LS138	74LS138 '3 to 8' Line Decoder/Demultiplexer DIP-16 Spec $0.75 Each

---

Part	Item	Description
	IC-74LS139	74LS139 Dual 2 to 4 Line Decoder/Demultiplexer DIP-16 Spec $0.75 Each

---

Part	Item	Description
	IC-74HC139	74HC123 Logic Decoder DIP-16, Limited STOCK! $1.50 Each

---

Part	Item	Description
	IC-74150	74150 16 Line to 1 Line Selector/Multiplexer DIP-24, TTL Spec $3.25 Each

---

Part	Item	Description
	IC-74153	74153 Dual 4-to-1 line data selector/mux DIP-16, TTL - Obsolete, Spec Buy a tube of 10 and save! $0.25 Each $2.00 10-Pack

---

Part	Item	Description
	IC-74LS155	74LS155 Dual 2:4 Line Decoder/Demultiplexer DIP-16, TTL, Spec $0.50 Each

---

Part	Item	Description
	IC-74154	74HCT154N 4-to-16 Decoder DIP-24, TTL, Spec U2 on Bally Solenoid Driver Modules (74L154) $1.75 Each

---

Part	Item	Description
	IC-74157	74157 Quad 2-to-1 line data selector/mux DIP-16, TTL - Obsolete, Spec Buy a tube of 10 and save! $0.25 Each $2.00 10-Pack

---

Part	Item	Description
	IC-74LS157	74LS157 Quad 2-to-1 line data selector/mux DIP-16 Spec $0.75 Each

---

Part	Item	Description
	IC-74LS161	74LS161, 4-Bit Presettable Binary Counter DIP-16, TTL, Spec $1.00 Each

---

Part	Item	Description
	IC-74LS166	74LS166 8-Bit Shift Register, Parallel Load DIP-16, TTL, Spec $1.00 Each

---

Part	Item	Description
	IC-74175	74175, Quad D-Flip Flop DIP-16, TTL, Spec Used on Gottlieb System-1 and -80 drivers $1.00 Each

---

Part	Item	Description
	IC-74LS240	74LS240, Octal Buffer/Line Driver (Tri State Output) DIP-20, Spec Found on WPC MPU boards $1.00 Each

---

Part	Item	Description
	IC-74LS244	74LS244, Octal Driver (Tri State Output) DIP-20, TTL Found on WPC MPU boards $0.75 Each

---

Part	Item	Description
	IC-74HC244	74HC244, Octal Driver (Tri State Output) DIP-20, TTL $0.50 Each

---

Part	Item	Description
	IC-74LS245	74LS245, Octal Bidirectional Buffer DIP-20, TTL $0.50 Each

---

Part	Item	Description
	IC-74LS367	74LS367 Hex Bus Driver with 3-State Outputs DIP-16, TTL Spec $0.75 Each

---

Part	Item	Description
	IC-74LS368	74LS368 Buffer Line Driver DIP-16 Spec $0.85 Each

---

Part	Item	Description
	IC-74HCT373	74HCT373, Octal D Latch DIP-20, TTL $0.50 Each

---

Part	Item	Description
	IC-74LS373	74LS373, Octal D Latch DIP-20, TTL Spec $0.50 Each

---

Part	Item	Description
	IC-74HC374	74HC374, Octal Register DIP-20, TTL $0.50 Each

---

Part	Item	Description
	IC-74LS374	74LS374, Octal Register DIP-20, TTL Spec $0.60 Each

---

Part	Item	Description
	IC-74HC390	74HC390, Dual Decade Ripple Counter DIP-16 $1.50 Each

---

Part	Item	Description
	IC-74HC4543	74HC4543, Logic Decoder DIP-16 $0.50 Each

---

Memory & Processors

Part	Item	Description
	IC-2114	2114 RAM Various Speeds (mostly 400s) 18 pin DIP Used on many video games (Atari, others) And on Williams SYS 7 MPU (two) $2.50 Each

---

Part	Item	Description
	IC-4116	4116 RAM Various Speeds 16 pin DIP Used on many Williams video games Quality pulls, limited stock $2.00 Each

---

Part	Item	Description
	IC-4264	4164/4264 DRAM 200ns 64K x 1-bit 16 pin DIP Quality pulls, limited stock $1.00 Each

---

Part	Item	Description
	IC-2101	2101 RAM Used on some games, not suitable for battery backup. DIP 22 X 0.4" $3.00 Each

---

Part	Item	Description
	IC-5101	5101 CMOS RAM Used on many games (Bally, Williams, Gottlieb, etc). DIP 22 X 0.4" $8.00 Each

---

Part	Item	Description
	IC-5101	5101 CMOS RAM Used on many games (Bally, Stern, Williams, Gottlieb, Video, etc). Used Pulls, Limited Stock. DIP 22 X 0.4" $6.00 Each

---

Part	Item	Description
	IC-5116	5116 CMOS RAM Used on many games, suitable as a 6116 replacement in most cases. DIP-24 package $2.00 Each

---

Part	Item	Description
	IC-6116	6116 CMOS RAM Used on many games. Used pulls, limited stock. DIP-24 $2.00 Each

---

Part	Item	Description
	IC-6264	6264 CMOS RAM Low power. Used on many games. DIP-28 $3.00 Each

---

Part	Item	Description
	IC-6321	6321 PIA (CMOS) Not typically used on pinball boards, though reports vary. Limited Stock. DIP-40 $5.00 Each

---

Part	Item	Description
	IC-6502	6502 Microprocessor Used on various Gottlieb System-80 solid state machines. DIP-40 $7.00 Each

---

Part	Item	Description
	IC-6502	6502 Microprocessor Used on various Gottlieb System-80 solid state machines. Used Pulls, Limited Stock DIP-40 $5.00 Each

---

Part	Item	Description
	IC-6532	6532 RIOT RAM, I/O, and Timer IC Used on many Gottlieb Solid State machines DIP-40 $9.50 Each

---

Part	Item	Description
	IC-6545	6545 CRT Controller Used on some video poker and video games. Used Pulls, Limited stock. DIP-40 Spec. $8.00 Each

---

Part	Item	Description
	IC-6800	6800 MPU Used on Bally AS-2518-17, -35, & -133 MPU Modules. DIP-40 $7.50 Each

---

Part	Item	Description
	IC-6802	6802 MPU Used on Bally boards and Williams Sys 6-7. Some boards can be modified to use this not use a 6810 or 9602. DIP-40 $10.50 Each

---

Part	Item	Description
	IC-6803	6803 MPU Used on Bally boards, ref MC6803 or MC6803P, 1MHz. DIP-40 $10.00 Each

---

Part	Item	Description
	IC-6808	6808 MPU Used on Bally boards & Williams Sys 6-7. Some boards can be modified to use a 6802 instead. Hard to find, only 8 in stock. DIP-40 $15.00 Each

---

Part	Item	Description
	IC-6809	6809 MPU Used on Williams MPU and sound boards 2 MHz 40pin with external clock. DIP-40 Reference Williams part number 5400-09490-00 $8.00 Each

---

Part	Item	Description
	IC-6810	6810 Static RAM Used on Bally and Stern MPU boards and others. DIP-24 $3.00 Each

---

Part	Item	Description
	IC-6821	6821 PIA (substitute for 6820) Used on Bally, Stern, Williams MPU boards and others. DIP-40 $7.00 Each

---

Part	Item	Description
	IC-6821	6821 PIA (substitute for 6820) Used TESTED Pulls, various makers, good condition. Tested to boot. DIP-40 $5.00 Each

---

Part	Item	Description
	IC-6840	6840 Programmable Timer Used on Stern SB-300 Sound boards If your MPU boots without the sound board plugged in, good chance it's a bad 6840. DIP-28 Spec Sheet $5.00 Each

---

Part	Item	Description
	IC-6845	6845 CRT Controller Used on some video poker and video games. Used pulls, limited stock. DIP-40 Spec. $10.00 Each

---

Part	Item	Description

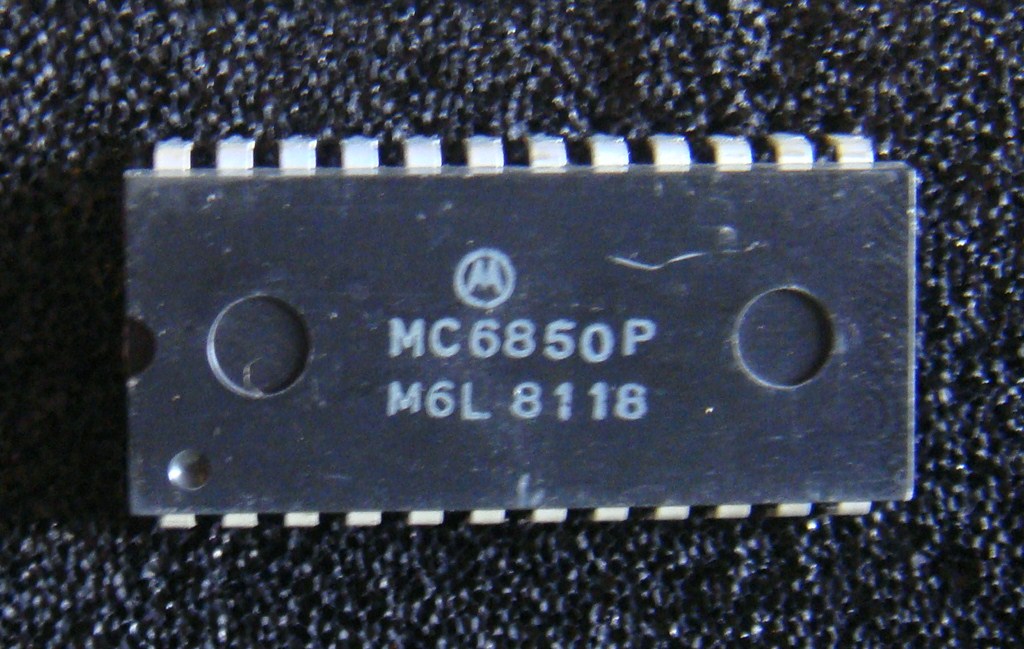

	IC-6850	6850 Asynchronous Communications Interface Adapter (ACIA) DIP-24 Spec Sheet $4.00 Each

---

---

Miscellaneous

Part	Item	Description
	IC-AY-3-8912	AY-3-8912 Sound Generator DIP-28 Used on Bally Squawk & Talk sound boards $6.25 Each

---

Part	Item	Description
	IC-AY-3-8910	AY-3-8910 Sound Generator with I/O DIP-40 Used on many Arcade and sound boards $6.25 Each

---

Part	Item	Description
	IC-MOC3011	MOC3011 Opto Isolator TRIAC DIP-6 Used on Bally Solenoid Expander boards If your board is buzzing, make sure you have a bulb installed under the playfield! If that's not it, this may solve your problem Spec $0.75 Each

---

Part	Item	Description
	IC-TL084	TL084/TL084CN Op amp DIP-14 Used on WPC sound boards Spec $0.75 Each

---

Part	Item	Description
	IC-3081	3081 NPN Transistor Array DIP-16 U1, 3, & 4 on Bally Solenoid Driver Modules $3.00 Each

---

Part	Item	Description
	IC-LM3900	LM3900N Quad Norton Op-Amp DIP-14, Spec Used on Bally Professional home version machines $1.50 Each

---

Part	Item	Description
	IC-LM339	LM339 Quad Comparator Used on many games, WPC and other driver and flipper opto boards Sub for BA10339. DIP-14, Low Power, Spec $0.50 Each

---

Part	Item	Description
	IC-555	555 Timer (LM555, 555CN, LM555CN) Used on Bally MPU Modules and Gottlieb Aux Lamp Drivers DIP-8, CMOS, Spec $0.30 Each

---

Part	Item	Description
	IC-556	556 Dual Timer (LM556, 556CN, LM556CN) Used on some Williams MPU boards DIP-14, Spec $0.80 Each

---

Part	Item	Description
	IC-AD558	AD558 DAC Digital Audio Convertor (AD558JN, AD558, 558) Used on Bally Squawk & Talk boards U10) Bally part # E-620-171 DIP-16, Spec $15.00 Each

---

Part	Item	Description

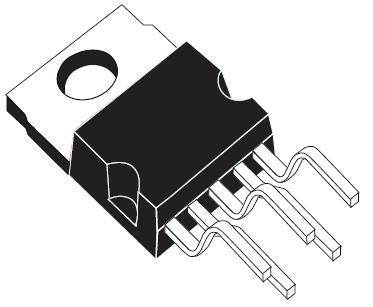

	IC-TDA2003V	TDA-2003V Audio Amp TO-220-5, 10 Watt Used on Bally Squawk & Talk boards and others $1.95 Each

---

Part	Item	Description
	IC-ULN2003A	ULN2003A NPN Darlington Array DIP-16, Spec Used on Bally Professional home version machines $1.00 Each

---

Part	Item	Description
	IC-ULN2074B	ULN2074B Quad NPN Darlington Switch DIP-16, Spec Used on Bally Professional home version machines $2.50 Each

---

Part	Item	Description
	IC-ULN2803	ULN2803 Darlington Transistor Array DIP-18 Used on WPC MPU boards (WPC95/WPC-S U20) $1.50 Each

---

Part	Item	Description
	IC-TMS5200	TMS5200NL Speech Generator DIP-24 $8.00 Each

---

Part	Item	Description
	IC-9602	9602 Dual Monostable Multivibrator DIP-16, Spec $3.00 Each

Part	Description	Part Number	Cost
	LM723CN Regulator, 150 mAmp, 2-37 Volt, DIP-14 IC1 on Gottlieb System-80 power supplies (sub for UA723CN)	LM723CN	$1.00 Each

---

---
