Hardware

Please Click Here if you do not see a menu frame on the left

6-32 Hardware 8-32 Hardware
1/4" Hardware

Leg Mounting Bracket

Springs
Shooter Spring, Flipper
return springs, Plunger springs



6-32 Hardware

6-32 Slotted Round Head Machine Screws

more coming soon! more coming soon! more coming soon!
6-32 x 5/8"
$0.40 - Bag of 10
6-32 x 3/4"
$0.50 - Bag of 10
more coming soon!


6-32x1-3/4" Philips Round Head Machine Screw
Used on lots of playfields

6-32 x 1-3/4"
$0.60 - Bag of 10

6-32x1-3/4" Slotted Round Head Wood Screw
Used on lots of playfields

6-32 x 1-3/4"
$1.00 - Bag of 10


Nuts and Washers

6-32 Hex Nut
$0.40 - Bag of 10
6-32 K-Lock Nut
$0.80 - Bag of 10
6-32 Nylon Lock Nut
$0.80 - Bag of 10
6-32 Tee-Nut
$0.90 - Bag of 10
#6 Flat Washer
$0.40 - Bag of 10
#6 Lock Washer
$0.40 - Bag of 10



8-32 Hardware

8-32 Combination Round Head Machine Screws
(combination slotted and phillips head)

8-32 x 1/2"
$0.90 - Bag of 10
8-32 x 3/4"
$1.00 - Bag of 10
More coming soon!


Nuts and Washers

8-32 Hex Nut
$0.40 - Bag of 10
8-32 K-Lock Nut
$0.80 - Bag of 10
8-32 Nylon Lock Nut
$1.00 - Bag of 10
8-32 Tee-Nut
$1.20 - Bag of 10
#8 Flat Washer
Coming Soon
#8 Lock Washer
$0.40 - Bag of 10



1/4" Hardware

1/4-20x1-1/2" Carriage Bolt
Used to hold Bally Playfield Release Levers

1/4-20 x 1-1/2"
Carriage Bolt
$0.15 - Each


Nuts and Washers

1/4-20 Hex Nut
$0.50 - Bag of 10
1/4" Flat Washer
Coming soon!
1/4" Lock Washer
$0.50 - Bag of 10




Leg Bolts

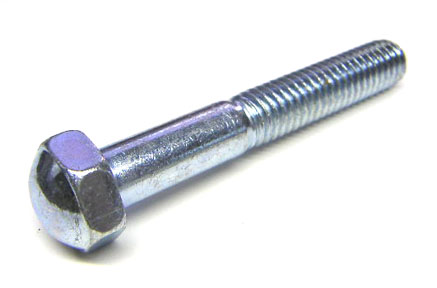

Standard 5/8" chrome leg bolts, rounded smooth edges
These are the extended type at 2 3/4" to support cup holders
But work in any game with no modification

Chrome
Leg Bolt
$0.75 - Each
Chrome Leg Bolts Set of 8
$5.00 - Set of 8


Classic Bally 9/16" chrome leg bolts, original to early Bally solid state games. Round top, flat sides. Used leg bolts that have been cleaned and tumbled, and run through a die. Additional cleaning my be needed for the extreme purist.

Classis Bally
Leg Bolt
$1.00 - Each
Classic Bally Leg Bolts Set of 8
$7.00 - Set of 8


Classic Stern 9/16" brass-like leg bolts, original to early Stern solid state games. Flat top, flat sides. Used leg bolts that have been cleaned and tumbled, and run through a die. Additional cleaning my be needed for the extreme purist.

Classic Stern
Leg Bolt
$1.00 - Each
Classic Stern Leg Bolts Set of 8
$7.00 - Set of 8

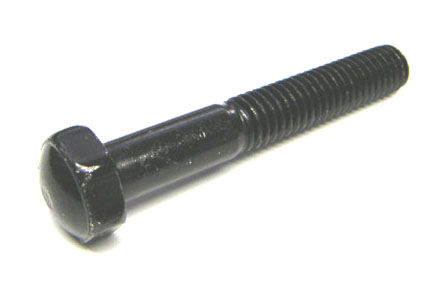

Standard 5/8" black leg bolts, rounded smooth edges

Black
Leg Bolt
$1.25 - Each
Black Leg Bolts
Set of 8
$8.50 - Set of 8

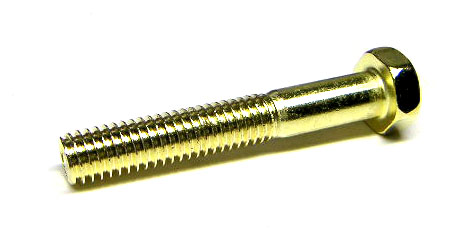

Standard 5/8" brass/gold leg bolts, rounded smooth edges

Brass (Gold)
Leg Bolt
$1.25 - Each
Brass (Gold)
Leg Bolts Set of 8
$8.50 - Set of 8

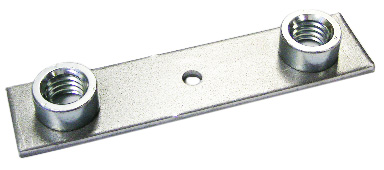

Leg Bolt Mounting Bracket

Used in older Bally/Stern, Gottlieb and Williams games
Can even be used for later games.

Leg Bracket
$3.75 - Each
Leg Brackets
Set of 4
$14.00 - Set of 4

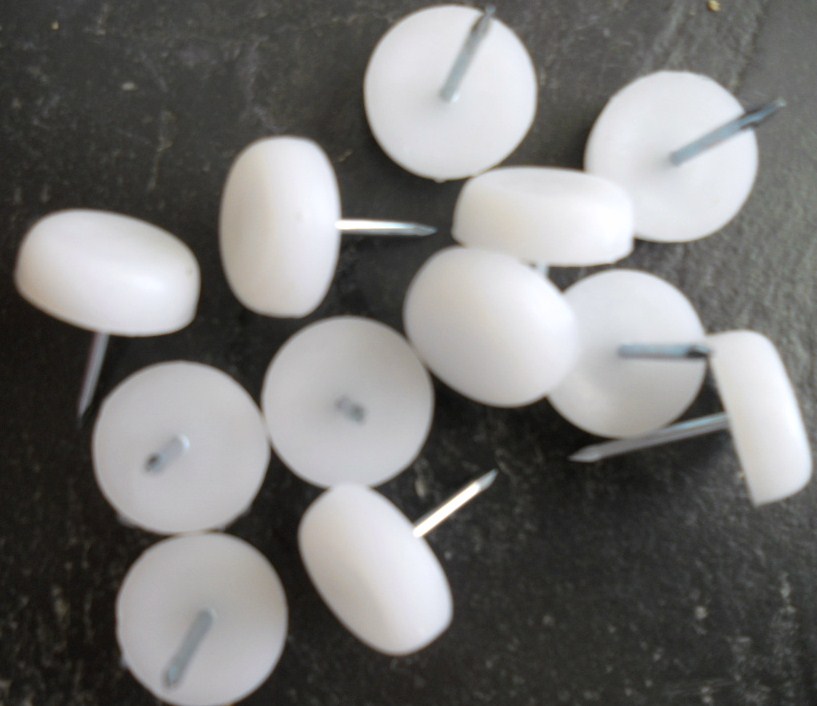

Nylon Base Glides

Used on near every pinball machine, on the bottom of
the head and back of the cabinet for storage "on end".
Measure 3/4" wide with a 15/16" nail.


$1.50 - Set of (4)



$4.00 - Set of (12)



$14.00 - Set of (48)

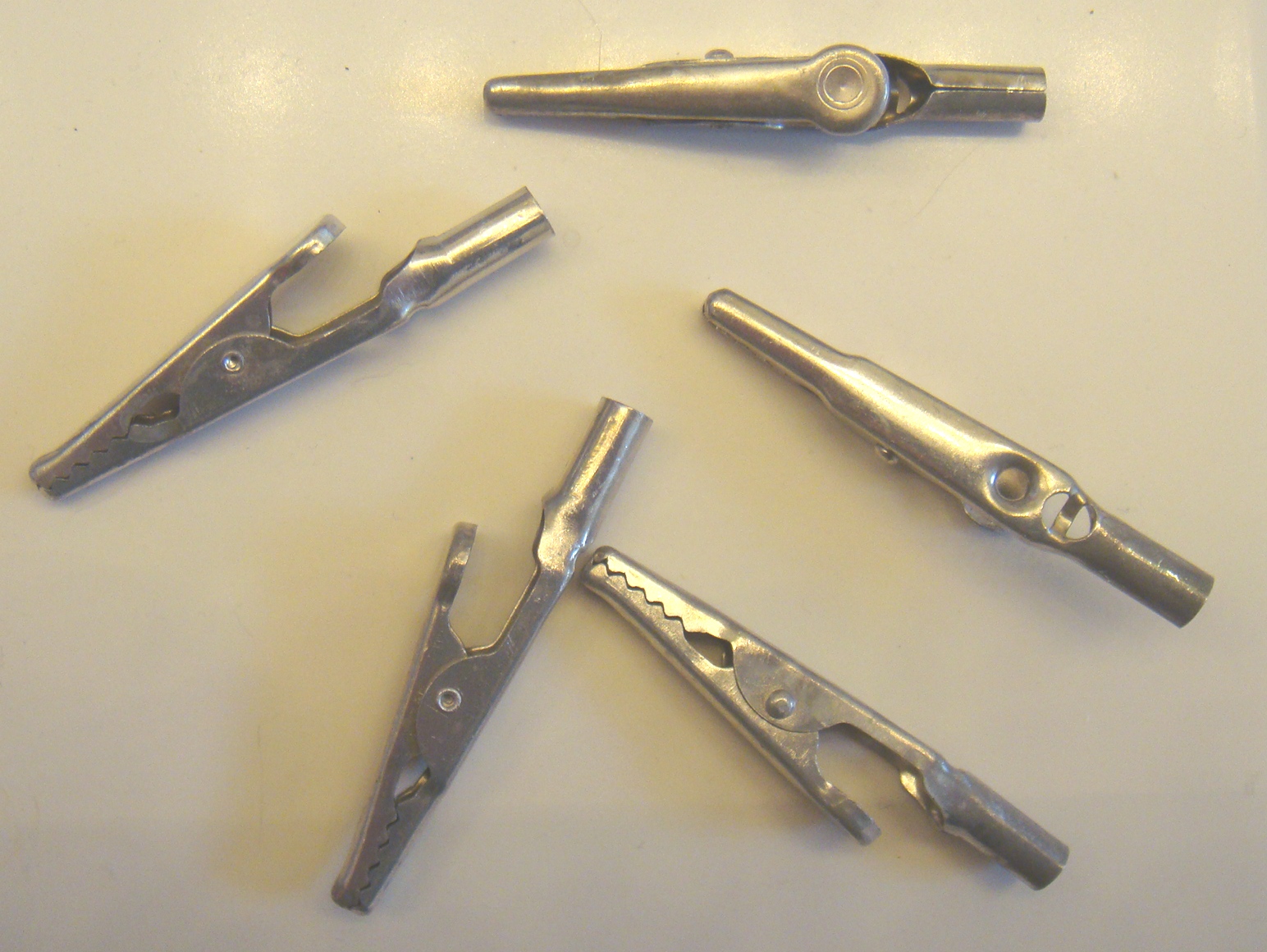

Alligator Clips

Super handy for testing. Add your own wire of any length.


$0.80 - Bag of (4)



$4.00 - Bag of (24)



$12.00 - Bag of (100)

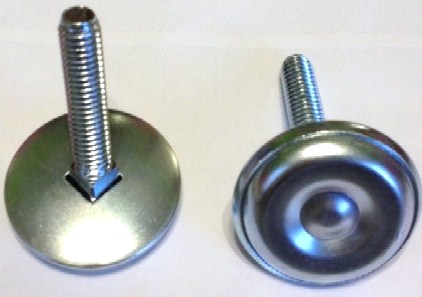

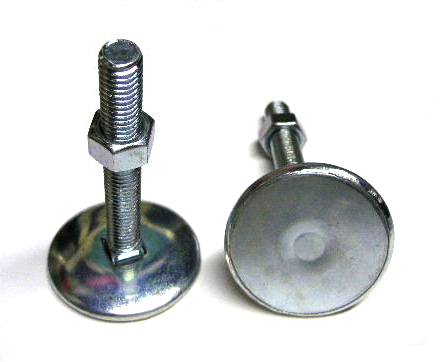

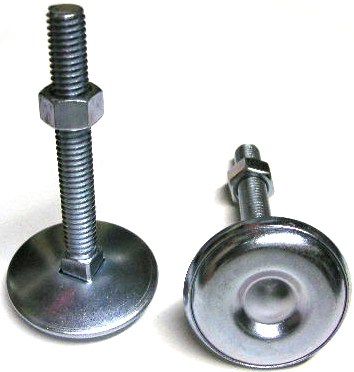

Leg Levelers

2" and 3" with or without the retaining nut

Leg Leveler
Heavy Duty 2"
Single with nut

$1.75 - Each

Leg Leveler
Heavy Duty 2"
Set of 4 with nuts

$6.00 - Set of 4

Leg Leveler
Heavy Duty 2"
Single w/o nut

$1.70 - Each

Leg Leveler
Heavy Duty 2"
Set of 4 w/o nuts

$5.75 - Set of 4


Leg Leveler
Heavy Duty 3 "
Single with nut

$1.75 - Each

Leg Leveler
Heavy Duty 3 "
Set of 4 with nuts

$6.00 - Set of 4

Leg Leveler
Heavy Duty 3 "
Single w/o nut

$1.70 - Each

Leg Leveler
Heavy Duty 3 "
Set of 4 w/o nuts

$5.75 - Set of 4




Springs

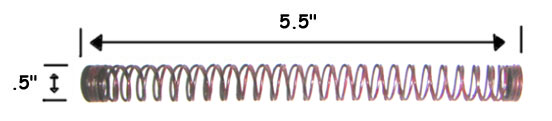

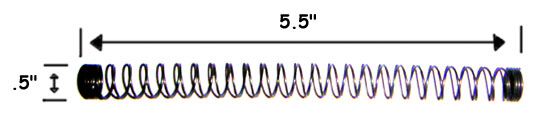

Ball Shooter Springs

Spring tension from lowest to highest:

Blue (266-5001-05) - Green (266-5001-04) - Standard (10-148-1) - Orange (266-5001-7) - Purple (266-5001) - Red (10-148-2)



This is the most common compression spring used in most games. Williams/Bally reference #10-148-1
Stern reference #266-5020-00

Ball Shooter Spring
Standard
Single
$0.60 - Each
Ball Shooter Spring
Standard
Pack of 4
$2.00 - Set of 4





This is a higher tension spring used on some games. Williams/Bally reference #10-148-2.

Ball Shooter Spring
High Tension Red
Single
$0.75 - Each
Ball Shooter Spring
High Tension Red
Pack of 4
$2.80 - Set of 4





This is a low tension spring used on some games.
DE/Sega/Stern #266-5001-05

Ball Shooter Spring
Low Tension Blue
Single
$1.25 - Each
Ball Shooter Spring
Low Tension Blue
Pack of 4
$4.50 - Set of 4





This is a low tension spring used on some games.
DE/Sega/Stern #266-5001-04

Ball Shooter Spring
Low Tension Green
Single
$1.25 - Each
Ball Shooter Spring
Low Tension Green
Pack of 4
$4.50 - Set of 4





This is a medium tension spring used on some games.
DE/Sega/Stern #266-5001-07

Ball Shooter Spring
Med Tension Orange
Single
$1.25 - Each
Ball Shooter Spring
Med Tension Orange
Pack of 4
$4.50 - Set of 4





This is a high tension spring used on some games.
DE/Sega/Stern #266-5001-??

Ball Shooter Spring
High Tension Purple
Single
$1.25 - Each
Ball Shooter Spring
High Tension Purple
Pack of 4
$4.50 - Set of 4



Bally/Stern & Williams Flipper return spring

This is the tapered spring used on many Bally and Williams games.
Williams/Bally reference #10-376.



Flipper Return Spring
$0.75 each
Flipper Return Spring
$1.25 pair


Bal Shooter/Plunger Barrel spring

Spring used on the shooter rod outside of the pinball cabinet.
This spring is used on all Data East, Sega, and Stern games as well as many Gottlieb, Williams, and Bally games.
Williams/Bally reference #10-149. Data East/Sega/Stern reference #266-5010-00.



Plunger Spring
$0.75 each
Plunger Spring
$1.25 pair
