Pinball Electronics For Sale
Sockets

Please Click Here if you do not see a menu frame on the left

Click on some pictures for a larger view

PartDescriptionPart NumberCost
8-Pin Machine Socket
Perfect for those 555 timer ICs

DIP-8 $0.40 Each

PartDescriptionPart NumberCost
14-Pin Machine Socket

DIP-14 $0.80 Each

PartDescriptionPart NumberCost
16-Pin Machine Socket

DIP-16 $0.90 Each

PartDescriptionPart NumberCost
16-Pin Leaf Socket
Special Purchase


$0.20 Each

$1.75 10-Pack




DIP-16L

$0.20 Each

$1.75 10-Pack


PartDescriptionPart NumberCost
18-Pin Machine Socket

DIP-18 $0.55 Each

PartDescriptionPart NumberCost
20-Pin Machine Socket

DIP-20 $0.50 Each

PartDescriptionPart NumberCost
22-Pin Machine Socket
Wide socket for the 5101 CMOS RAM
found on many MPU boards

DIP-22W $1.40 Each

PartDescriptionPart NumberCost

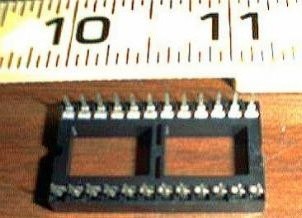

24-Pin Machine Socket, 0.6" width
For wider ICs like MC14541 decoders, game ROMs, etc.

DIP-24W $1.25
Each

PartDescriptionPart NumberCost
24-Pin Leaf Socket, 0.6" width
Brand new sockets I picked up in a special
deal so I'm passing the savings on to you

DIP-24L $0.40 Each

PartDescriptionPart NumberCost
28-Pin Machine Socket

DIP-28 $1.35 Each

PartDescriptionPart NumberCost
32-Pin Machine Socket
Perfect for Williams/Bally MPU and sound boards

(picture shows 28 pin)

DIP-32 $1.50 Each


PartDescriptionPart NumberCost
40-Pin Machine Socket
Perfect for Bally MPU and PIA and
Gottlieb System-80 MPU, RIOT, etc. integrated circuits

DIP-40 $1.85 Each


40-Pin Leaf Socket, 0.6" width
Brand new sockets I picked up in a special
deal so I'm passing the savings on to you
DIP-40L
$0.55 Each



SIPPS

PartDescriptionPart NumberCost

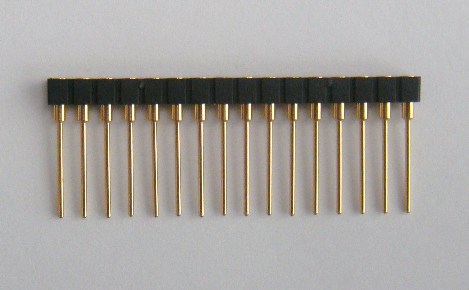

16-Pin SIP Machine Socket Strip with Long Leads
Can use like a normal SIP and cut off the excess, or elevate the chip for those areas where it's tough to solder both sides of the circuit board.
Easily cut to desired length
Out of stock!

SIP-16 $0.75 Each

PartDescriptionPart NumberCost
20-Pin SIP Machine Socket Strip
Easily cut to desired length

SIP-20 $1.00 Each

PartDescriptionPart NumberCost

30-Pin SIP Machine Socket Strip
Easily cut to desired length

Out of stock!

SIP-30 $3.25 Each


ASIC/PLCC


PartDescriptionPart NumberCost
84 Pin ASIC/PLCC IC Socket

Need an extraction tool? Click HERE

ASIC-Socket $1.75 Each

All items, descriptions, prices, and availability are subject to change without notice
