PartDescriptionPart NumberCost
Small Capacitor Mounting Bracket
Accepts Capacitors with diameters from 1.3" to 1.4"
Please note screw & nut not provided as on 6/1/2016

CMOUNT-S $2.25 Each


Heat Shrink Tubing, by the Foot

From left to right: 7.0mm (1/4"), 5.0mm (3/16"), 3.0mm (1/8"), 2.5mm (3/32"), 1.5mm (1/16")

Above diameters are before shrinking, tubing shrinks about 50% when heated
(actual diameters are in mm, English diameters are approximate)

SOLD IN ONE-FOOT LENGTHS except for the 1.5mm which is 1 Meter/39"

7.0mm (1/4")
$0.25/foot
5.0mm (3/16")
$0.25/foot
3.0mm (1/8")
$0.25/foot
2.5mm (3/32")
$0.25/foot
1.5mm (1/16")
$0.90/meter


Buy one foot length of each size and save!

Heat Shrink Kit
1-foot length of each size
$1.00 Each

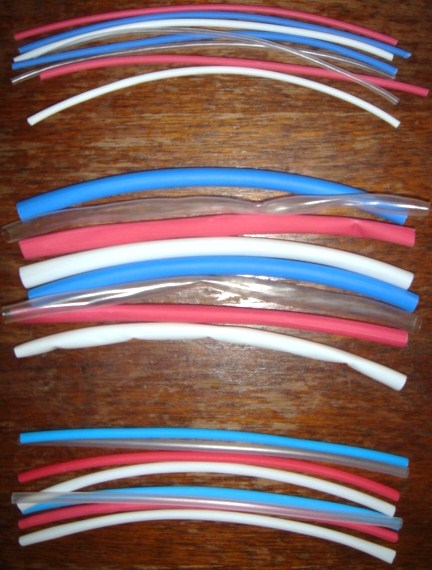

Heat Shrink Tubing Variety pack
Bag of 24 precut 6 inch long pieces
8 each of 1/16", 1/8" and 1/4" in red,
white blue and clear. 12 feet total.



Above diameters are before shrinking, tubing shrinks about 50% when heated

Heat Shrink
Variety Pack
$3.00 Each


Heat Shrink Tubing, bag of 25 precut 1 inch long 3.0mm (1/8")

SPECIAL PURCHASE!
OUT OF STOCK - Trying to find a new source..


Above diameters are before shrinking, tubing shrinks about 50% when heated

Heat Shrink
Bag of 25 precut 1"
$0.75 Each


3.57954MHz Crystal
Used on Williams Sys 3-7 MPU boards
Gottlieb System 80 MPU boards
Bally Sound boards and many others




This is a shorter version than what you may be used to seeing, but
tested in many boards I've repaired and works great.

Crystal 3.57954MHz

$0.65 Each


4.000MHz Crystal
Used on Williams Sys 9 & 11 MPU boards
Various Makers
Not properly shipped to me so legs are a bit bent




Crystal 4.000MHz

$2.65 Each


14.745MHz Crystal
Made by Toyocom Type 249A
NOS/Special Purchase
Approximately 100 pieces in stock


Crystal 14.745MHz

$0.35 Each


32.768KHz Crystal
Used on Williams WPC MPU boards (X1)
12.5pF load capacitance


If your clock is not keeping good time,
a faulty crystal may be the reason.

Crystal 32.768KHz

$0.35 Each




All items, descriptions, prices, and availability are subject to change without notice
