Bally/Stern 6 or 7 Digit Display Driver Kit

7.99

BD-BLY-Display-Kit

Bally/Stern 6 or 7 Digit Display Driver Kit

Includes all the parts needed to repair most problems with your Bally/Stern AS-2518-21, AS-2518-15, or AS-2518-58 Display Driver Module. This kit will NOT help you if your display glass is broken (check the nipple on the back side too), there are burn marks on the display segments, or there are major problems with the circuit board.

Includes:

(1) each 4543 BCD-to-Seven Segment decoder IC
(15) each MPS-A42 Transistors or equivalent
(7) each 2N5401 Transistors
(8) each 100K Ohm, 1/2 Watt Resistors
(1) each 16 pin socket

Game Listing:, All early Bally/Stern games with 6 or 7 digit displays.

Bally/Stern 6 or 7 Digit Display Driver Kit 5-Pack

31.99

BD-BLY-Display-Kit 5-Pack

Bally/Stern 6 or 7 Digit Display Driver Kit 5-Pack

Includes all the parts needed to repair most problems with 5 of your Bally/Stern AS-2518-21, AS-2518-15, or AS-2518-58 Display Driver Modules. This kit will NOT help you if your display glass is broken (check the nipple on the back side too), there are burn marks on the display segments, or there are major problems with the circuit board.

Includes:

(5) each 4543 BCD-to-Seven Segment decoder ICs
(75) each MPS-A42 Transistors or equivalent
(35) each 2N5401 Transistors
(40) each 100K Ohm, 1/2 Watt Resistors
(5) each 16 pin sockets

Game Listing:, All early Bally/Stern games with 6 or 7 digit displays.

Bally/Stern Display Driver Connector Kit

6.99

BD-BLY-Display-Connector-Kit

Bally/Stern Display Driver Connector Kit

Includes all the parts needed to the display connector going to Bally AS-2518-21, AS-2518-15, or AS-2518-58 and Stern 6 and 7 Display Driver Boards.

Includes:

(20) each 0.156" Standard Crimp pins for AWG 18-20 (larger wire)
(20) each 0.156" Standard Crimp pins for AWG 22-26 (smaller wire)
(1) each 0.156" 20-Circuit Connector housing
(1) each 0.156" Connector Key

Game Listing:, All early Bally/Stern games with 6 or 7 digit displays.

Bally/Stern Display Driver Connector Kit 5-Pack

27.99

BD-BLY-Display-Connector-Kit-5-Pack

Bally/Stern Display Driver Connector Kit 5-Pack

5-Pack of all the parts needed to the display connector going to Bally/Stern AS-2518-21, AS-2518-15, or AS-2518-58 Display Driver Boards.

Includes:

(100) each 0.156" Standard Crimp pins for AWG 18-20 (larger wire)
(100) each 0.156" Standard Crimp pins for AWG 22-26 (smaller wire)
(5) each 0.156" 20-Circuit Connector housing
(5) each 0.156" Connector Key

Game Listing:, All early Bally/Stern games with 6 or 7 digit displays.

Bally/Stern Display Driver Resistors (40)

2.99

BD-BLY-Display-Resistors-40

Includes enough 100K 1/2 Watt resistors (40) to upgrade five Bally 6 or 7-digit display drivers. Even if your displays work fine, if the 100K Ohm resistors are 1/4 watt, you should upgrade to the 1/2 watt resistors. Your displays will work even better and will be more reliable if you do. A common failure point (burned) on all Bally/Stern displays. These are high quality XICON resistors.

Game Listing:, All early Bally/Stern games with 6 or 7 digit displays.

Bally/Stern Display Driver Resistors (100)

6.99

BD-BLY-Display-Resistors-100

Includes enough 100K 1/2 Watt resistors (100) to upgrade ten+ Bally 6 or 7-digit display drivers. Even if your displays work fine, if the 100K Ohm resistors are 1/4 watt, you should upgrade to the 1/2 watt resistors. Your displays will work even better and will be more reliable if you do. A common failure point (burned) on all Bally/Stern displays. These are high quality XICON resistors.

Game Listing:, All early Bally/Stern games with 6 or 7 digit displays.

Bally/Stern Variety Fuse Kit #1

11.99

BD-BLY-Fuse-Kit1

This kit provides 2 fuses found in the early Bally solid state pinball machines, including the hard to find 3/16 Amp 8AG fuse found on the solenoid/regulator board. Some Bally -54 power supply boards had two 15A fuses on them while others had a single 20A. These fuses are all quality Buss or Littelfuse fuses except for the 8AG fuse.

Includes:

(2) each 3/16 Amp 8AG (small) fast blow fuses
(2) each 3/4 Amp fast blow fuses
(2) each 4 Amp fast blow fuses
(2) each 5 Amp fast blow fuses
(2) each 10 Amp fast blow fuses
(2) each 15 Amp fast blow fuses
(2) each 20 Amp fast blow fuses

(2) each 1 Amp slow blow fuses
(2) each 3 Amp slow blow fuses
(2) each 5 Amp slow blow fuses

Game Listing:, All early Bally/Stern games.

Bally/Stern Variety Fuse Kit #2

10.99

BD-BLY-Fuse-Kit2

This kit provides 2 fuses found in the early Bally solid state pinball machines and includes regular 3AG size 3/16 Amp fuses for those boards that take them or have been modified to take them on the solenoid/regulator board. Some Bally -54 power supply boards had two 15A fuses on them while others had a single 20A. These fuses are all quality Buss or Littelfuse fuses.

Includes:

(2) each 3/16 Amp fast blow fuses
(2) each 3/4 Amp fast blow fuses
(2) each 4 Amp fast blow fuses
(2) each 5 Amp fast blow fuses
(2) each 10 Amp fast blow fuses
(2) each 15 Amp fast blow fuses
(2) each 20 Amp fast blow fuses

(2) each 1 Amp slow blow fuses
(2) each 3 Amp slow blow fuses
(2) each 5 Amp slow blow fuses

Game Listing:, All early Bally/Stern games.

Bally -18/Stern TA-100 Power Supply Fuse Kit

4.99

BD-BLY-18-STN-TA100-PS-Fuse-Kit

Bally -18/Stern TA-100 power supply Fuse Kit

This kit provides 1 set of fuses found on the Bally AS-2518-18 or Stern TA-100 power supply (rectifier) board. It does not include any under-playfield fuses, nor does it include the fuse located on the regulator/solenoid driver board. These fuses are all brand new quality Bussman/Cooper or Littelfuse fuses.

Includes:

(1) each 10 Amp fast blow fuse for F1
(1) each 3/4 Amp fast blow fuse for F2
(1) each 4 Amp fast blow fuse for F3
(1) each 5 Amp fast blow fuse for F4
(1) each 20 Amp fast blow fuse for F5
(1) each 3 Amp slow blow fuse for F6

Game Listing:, All early Bally/Stern games with a -18 or TA-100 power supply assembly.

Bally -49 Power Supply Fuse Kit

4.99

BD-BLY-49-PS-Fuse-Kit

This kit provides 1 set of fuses found on the Bally AS-2518-49 power supply (rectifier) board. It does not include any under-playfield fuses, nor does it include the fuse located on the regulator/solenoid driver board. These fuses are all brand new quality Bussman/Cooper or Littelfuse fuses.

Includes:

(2) each 20 Amp fast blow fuses for F1 & F5
(1) each 3/4 Amp fast blow fuse for F2
(1) each 4 Amp fast blow fuse for F3
(1) each 5 Amp fast blow fuse for F4
(1) each 3 Amp slow blow fuse for F6

Game Listing:, All early Bally games with a -49 power supply assembly.

Bally -54 Power Supply Fuse Kit (early boards)

4.99

BD-BLY-54-PS-Fuse-Kit (Early)

This kit provides 1 set of fuses typically found on the Bally AS-2518-54 (early version) power supply board, including the 3-Amp slow blow found in the off-board fuse holder. It does not include any under-playfield fuses, the fuse for the strobe transformer, nor the fuse located on the regulator/solenoid driver board. These fuses are all brand new quality Bussman/Cooper or Littelfuse fuses.

Includes:

(2) each 20 Amp fast blow fuses for F1 & F5
(1) each 3/4 Amp fast blow fuse for F2
(1) each 4 Amp fast blow fuse for F3
(1) each 5 Amp fast blow fuse for F4
(1) each 3 Amp slow blow fuse (off board)

Game Listing:, All early Bally -54 power supply assembly.

Bally -54 Power Supply Fuse Kit (later boards)

5.49

BD-BLY-54-PS-Fuse-Kit (Later)

This kit provides 1 set of fuses typically found on the Bally AS-2518-54 (Rev B later boards) power supply board, including the 3-Amp slow blow found in the off-board fuse holder. It does not include any under-playfield fuses, the fuse for the strobe transformer, nor the fuse located on the regulator/solenoid driver board. These fuses are all brand new quality Bussman/Cooper or Littelfuse fuses.

Includes:

(1) each 20 Amp fast blow fuses for F1
(1) each 3/4 Amp fast blow fuse for F2
(1) each 4 Amp fast blow fuse for F3
(1) each 5 Amp fast blow fuse for F4
(2) each 15 Amp fast blow fuses for F1 & F5
(1) each 3 Amp slow blow fuse (off board)

Game Listing:, All early Bally -54 power supply assembly.

Bally/Stern Lamp Driver Kit

9.99

BD-BLY-Lamp-Driver-Kit

Includes 10 of each of the SCRs used on Bally Lamp boards AS-2518-14 and AS-2518-23, Bally Aux Lamp boards AS-2518-43 and AS-2518-52, the Bally Solenoid/Lamp Combo boards AS-2518-107 and AS-2518-147, and the Stern LDA-100 Lamp Driver boards. Bad ones are often the cause of lamps not working, or locked on.

Includes:

(10) each MCR-106 SCRs
(20) each 2N5064 SCRs

Game Listing:, All early Bally/Stern games with a Lamp Driver board.

Bally/Stern Lamp Driver IC Kit

7.99

BD-BLY-Lamp-IC Kit

If you have one section out on your Bally/Stern lamp driver board, it's likely an IC and this kit may be all you need. There are 4 sections on the lamp driver board, please note the 2nd picture to deptermine which section is bad. While your board is out, check all headers for poor soldering.

Includes:

(1) each 4050 Hex Buffer IC
(1) each 4543 BCD-to-Seven Segment decoder IC
(1) each 16 pin socket
(1) each 24 pin socket

Game Listing:, All early Bally/Stern games with 6 or 7 digit displays.

Bally/Stern Lamp Driver Connector Kit

19.99

BD-BLY-Lamp-Driver-Connector-Kit

Includes all of the housings, crimp pins and keys used on the Bally AS-2518-23 or Stern LDA 100 Lamp Driver boards. Games do not use all 100 pins so you'll have plenty extras. 6MDM uses 74 for example. .

Includes:

(2) each 28 pin housings (J1/J3)
(1) each 23 pin housing (J2)
(1) each 17 pin housing (J4)
(100) each .100 crimp pins
(4) each .100 keys

Game Listing:, All early Bally/Stern games with a Lamp Driver board.

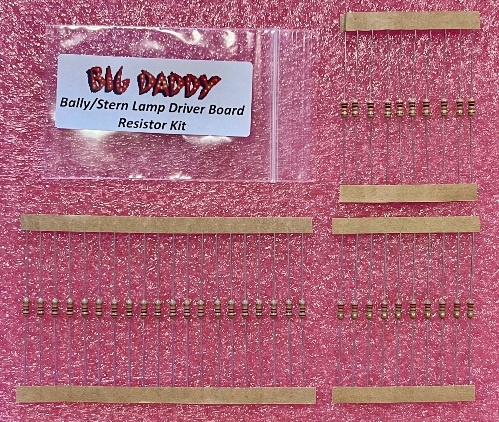

Bally/Stern Lamp Driver Resistor Kit

2.99

BD-BLY-Lamp-Driver-Resistor-Kit

Sometimes the corrosion from the MPU drips on the Lamp Driver board and hits some resistors. Here's some of each of the 3 values found on both Bally/Stern lamp driver boards in case this happened to your board.

Includes:

(10) each 20K Ohm, 1/4 Watt Resistors
(20) each 2K Ohm, 1/4 Watt Resistors
(10) each 2.2M Ohm, 1/4 Watt Resistors

Game Listing:, All early Bally/Stern games with a Lamp Driver board.

Bally AS-2518-43 Auxiliary Lamp Driver Kit

12.99

BD-BLY-Aux-Lamp-Driver-43-Kit

Bally AS-2518-43 Auxiliary Lamp Driver Kit

This kit supplies you with plenty of parts to fix your Bally AS-2518-43 Auxiliary Lamp Driver Board.

Includes:

(7) each 20K Ohm 1/4 Watt Resistors (R2-R8)
(12) each 2K Ohm 1/4 Watt Resistors (R9-R20)
(1) each 2.2M Ohm 1/4 Watt Resistor (R1)
(2) each MC14555 Binary 1-to-4 ICs (U2/U3)
(1) each MC14013 Dual D Flip Flop IC (U1)
(12) each MCR106 SCRs (Q1-Q12)
(2) each DIP-16 Sockets
(1) each DIP-14 Socket
(1) each 0.01/400V Ceramic Capacitor (C1)

Game Listing:, Black Pyramid, Centaur/Centaur II, Future Spa, Kings of Steel, KISS, Spy Hunter, X's & O's

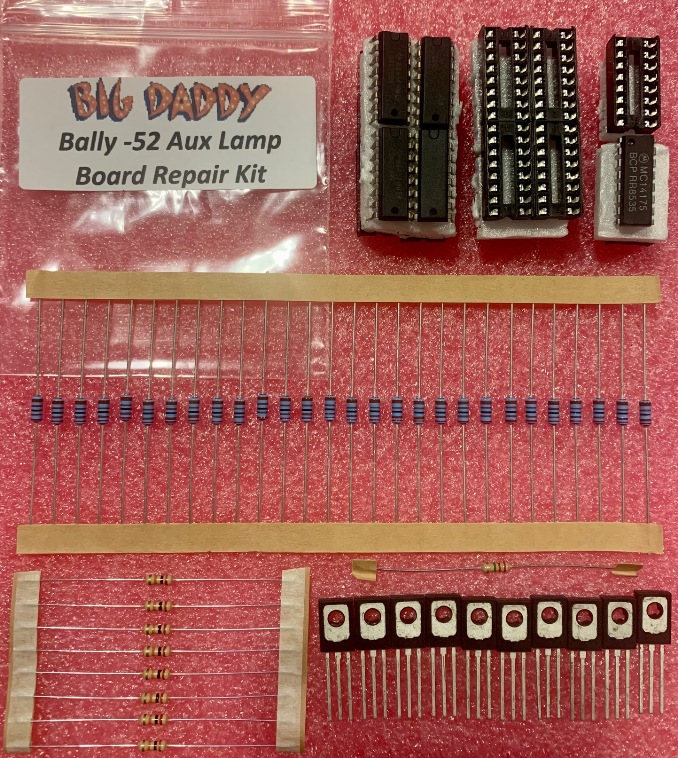

Bally AS-2518-52 Auxiliary Lamp Driver Kit

14.99

BD-BLY-Aux-Lamp-Driver-52-Kit

Bally AS-2518-52 Auxiliary Lamp Driver Kit

This kit supplies you with plenty of parts to fix your Bally AS-2518-52 Auxiliary Lamp Driver Board.

Includes:

(8) each 20K Ohm 1/4 Watt Resistors
(28) each 2K Ohm 1/4 Watt Resistors
(1) each 2.2M Ohm 1/4 Watt Resistor
(1) each MC14175 Quad D-Flip Flop IC
(4) each 4028 Decoder ICs
(10) each MCR106 SCRs
(5) each DIP-16 Sockets

Game Listing:, Eight Ball Deluxe (all versions), Elektra, Embryon, Fathom, Fireball II, Flash Gordon, Medusa, Mr. & Ms Pacman, Space Invaders, Speakeasy, Vector, Xenon

Bally AS-2518-52 Auxiliary Lamp Driver Connector Kit

11.99

BD-BLY-Aux-Lamp-Driver-52-Connector-Kit

Bally AS-2518-52 Auxiliary Lamp Driver Connector Kit

Includes all the parts needed to the replace the connector going to Bally AS-2518-52 Auxiliary Lamp Driver Board.

Includes:

(1) each 15 pin .156 housing for J1
(1) each 18 pin .156 housing for J2
(1) each 20 pin .156 housing for J3
(3) each Connector key pins for .156-inch housings
(50) each .156-inch crimp pins, 18-20AWG (B)

Game Listing:, Eight Ball Deluxe (all versions), Elektra, Embryon, Fathom, Fireball II, Flash Gordon, Medusa, Mr. & Ms Pacman, Space Invaders, Speakeasy, Vector, Xenon

Bally/Stern MPU Processor Kit

31.99

BD-BLY-MPU-PROC-Kit

Contains one Processor (6800) and two PIAs (6821s) for any Bally AS-2518-17, AS-2518-35, or AS-2518-133 MPU boards or Stern M-100 & M-200 MPU boards. Please look for MPU kits for 6803 games and VIDIOT games later. These are not black topped or "fake" chips and all are tested before being sent.

Includes:

(1) each 6800 Processor IC (40 pin)
(2) each 6821 PIA ICs(40 pin) compatible with 6820s
(3) each 40 pin DIP sockets

Game Listing:, All early Bally/Stern games with an MPU board listed above.

Bally/Stern Deluxe MPU Processor Kit

45.99

BD-BLY-DEL-MPU-PROC-Kit

Contains one Processor (6800), two PIAs (6821s), one 6800 RAM and one 5101 CMOS RAM integrated circuits for any Bally AS-2518-17, AS-2518-35, or AS-2518-133 MPU boards or Stern M-100 & M-200 MPU boards. Please look for MPU kits for 6803 games and VIDIOT games below. These are not black topped or "fake" chips and all are tested before being sent.

Includes:

(1) each 6800 Processor IC (40 pin)
(2) each 6821 PIA ICs(40 pin) compatible with 6820s
(1) each 6810 RAM (24 pin)
(2) each 5101 CMOS RAM (22 pin)
(3) each 40 pin DIP sockets
(1) each 24 pin DIP socket
(1) each 22 pin DIP socket

Game Listing:, All early Bally/Stern games with an MPU board listed above.

Bally/Stern MPU Corrosion Repair Kit

16.99

BD-BLY-MPU-Corrosion-Kit

This kit is for Bally & Stern MPU boards including Bally -17, Bally -35, Bally -133 (see note below), Stern MPU-100 and Stern MPU-200 boards. Contains the following parts that are most frequently damaged by battery corrosion. Please note current picture shows 5101 & socket which is OPTIONAL, order below. The value in this kit isn't just the parts, it's being able to get them all at once from one source.

Includes:

C1,C2 - Capacitor 820pF, axial or radial ceramic (small yellow bulb, #6 & #7 down in picture above)
C5 - Capacitor 47uF, radial tantalum (small yellow barrel, top of picture above)
C3,C13,C80 - Capacitor 0.1uF, axial ceramic (square brown, upper right picture above)
CR5,CR7,CR52 - Diode 1N4148 (CR52 optional, see note below. Smaller zener #3 - #5 above))
CR8 - LED Green
CR44 - Diode 1N4007
R1,R3,R24,R28 - Resistor 8.2K ohm, 1/4W
R2 - Resistor, 120K ohm, 1/4W
R11 - Resistor, 82 ohm, 2W
R12 - Resistor 270 ohm, 1/4W
R16, R113 - Resistor 2K ohm, 1/4W (See Note)
R17 - Resistor 150K ohm, 1/4W
R29 - Resistor 470 ohm, 1/2W
R107 - Resistor 3.3K ohm, 1/4W
R112 - Resistor 1K ohm, 1/4W
R134 - Resistor 4.7K ohm, 1/4W
R140 - Resistor 20K ohm, 1/4W
Q1,Q2 - Transistor 2N3904 or 2N4401 or equivalent
Q5 - Transistor 2N4403, 2N3906, MPS-A92 or equivalent
VR1 - Diode 1N4738A, zener, 8.2V (alternate for 1N9598)
22 Pin machine socket (optional, order below)
U8 - 5101 Static RAM (optional, order below) (various makers) Please note Stern MPU-200s require two 5101s

Game Listing:, All early Bally/Stern games with an MPU board listed above.

5101 Static RAM and socket

9.99

BD-5101andSOCKET

5101 Static RAM and socket for Bally, Stern, Gottlieb, Game Plan, Williams System 3-7 and other games. Please note some Stern games use two.

Includes:

1 ea. 5101 Static RAM (various makers)
1 ea. 22pin leaf socket

Game Listing:, All early Bally/Stern games with an MPU board listed above, Gottlieb System 1 MPUs and others .

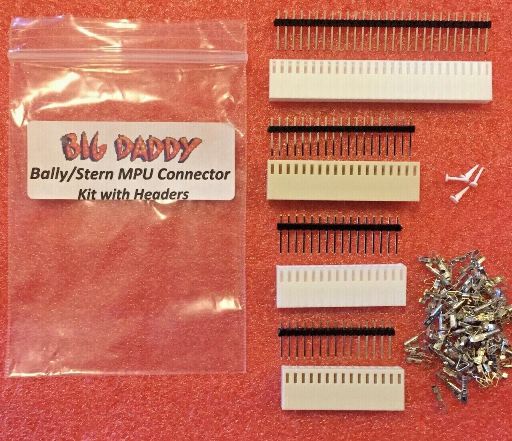

Bally/Stern MPU Connector Kit

19.99

BD-BLY-MPU-CONN-Kit

Includes all of the housings, header pins, crimp ends and keys used on a Bally or Stern MPU board. Games do not use all 78 pins so you'll have plenty of extras. When you have corroded header pins, chances are your housing pins are corroded too. If you've sanded the pins, that's a temporary solution and you need to replace your header pins. IDC (push in) type connectors are less reliable than these crimp type. If you squeeze the housings and your game works for awhile, or booting up is problematic, switches and coils working are intermittent, you likely have connector issues that this kit will fix. Some Sterns use the 32 pin (J5) connector for the sound board and you may need to replace that header also.

Includes:

1 ea. 28 or 8 & 19 pin header and housing (J1)
1 ea. 15 or 5 & 9 pin header and housing (J2)
1 ea. 16 or 3 & 12 pin header and housing (J3)
1 ea. 19 or 5 & 13 pin header and housing (J4)
100 ea. (.100) crimps ends
4 ea. (.100) keys

Game Listing:, All early Bally/Stern games with an MPU board listed above.

Additional 36 Pin Header for Stern Games

1.99

BD-36PinHeader

Bally 6803 MPU Processor Kit

40.99

BD-BLY-6803-MPU-PROC-Kit

Contains one Processor (6803), two PIAs (6821s) and one CMOS RAM (6116) integrated circuits for the Bally/Midway 6803 MPU board. These are not black topped or "fake" chips and all are tested before being sent.

Includes:

(1) each 6800 Processor IC (40 pin)
(2) each 6821 PIA ICs(40 pin) compatible with 6820s
(1) each 6116 CMOS RAM (24 pin)
(3) each 40 pin DIP sockets
(1) each 24 pin DIP socket

Game Listing:, All early Bally/Stern games with an MPU board listed above.

Bally VIDIOT MPU Processor Kit

40.99

BD-BLY-VIDIOT-MPU-PROC-Kit

Contains one Processor for the Video section (6809), one Processor for the Audio section (6803) and one PIA for the I/O Section (6821) for the Bally VIDIOT MPU board. These are not black topped or "fake" chips and all are tested before being sent.

Includes:

(1) each 6803 Processor IC (40 pin)
(1) each 6809 Processor IC (40 pin)
(1) each 6821 PIA ICs(40 pin) compatible with 6820s
(3) each 40 pin DIP sockets

Game Listing:, Baby Pac-Man, Granny and the Gators

Bally -18/Stern TA-100 Power Supply Kit

24.99

BD-BLY-18-PS-Kit

This kit provides all the parts you need except the fuses and headers to rebuild your Bally AS-2518-18 or Stern TA-100 Rectifier Board assembly. Please note that the bridges are mounted on the front. Fuses, headers and housings are available below.

Includes:

(4) each IN4007 Diode
(3) each Bridge Rectifiers w/ Wires (minimum 200V 35A)
(1) each Heat Sink w/Mounting Hardware and heat sink grease(for BR1)
(1) each 100 Volt MOV
(1) each 25-27 Ohm, 5 Watt Resistor
(1) each 600-620 Ohm, 10 Watt Resistor
(1) each 100K Ohm, 1/4 Watt Resistor
(2) each High Current Fuse Clips (for F5)
(10) each Low Current Fuse Clips for all others

Game Listing:, All early Bally/Stern games with a -18 or TA-100 power supply assembly.

Bally -18/Stern TA-100 Power Supply Fuse Kit

4.99

BD-BLY-18-STN-TA100-PS-Fuse-Kit

This kit provides 1 set of fuses found on the Bally AS-2518-18 or Stern TA-100 power supply (rectifier) board. It does not include any under-playfield fuses, nor does it include the fuse located on the regulator/solenoid driver board. These fuses are all brand new quality Bussman/Cooper or Littelfuse fuses.

Includes:

(1) each 10 Amp fast blow fuse for F1
(1) each 3/4 Amp fast blow fuse for F2
(1) each 4 Amp fast blow fuse for F3
(1) each 5 Amp fast blow fuse for F4
(1) each 20 Amp fast blow fuse for F5
(1) each 3 Amp slow blow fuse for F6

Game Listing:, All early Bally/Stern games with a -18 or TA-100 power supply assembly.

Bally -18/Stern TA-100 Headers

2.99

BD-BLY-18-STN-TA100-Headers

These are the three headers on a Bally AS-2518-18 or Stern TA-100 power supply (rectifier) board. Since some people stock their own headers or purchase a new board, these are offered seperately.

Includes:

(1) each 8 pin .156 header for J1
(1) each 10 pin .156 header for J2
(1) each 20 pin .156 header for J3

Game Listing:, All early Bally/Stern games with a -18 or TA-100 power supply assembly.

Bally -18/Stern TA-100 Power Supply Connector Kit

11.99

BD-BLY-18-STN-TA100-Power-Supply-Conn-Kit

Bally -18/Stern TA-100 Power Supply Connector Kit

This is a kit with everything you need to repair the connector housings going to a Bally AS-2518-18 or Stern TA-100 Power Supply. These Bally/Stern games are all over 30 years old, and the power supply and it's connectors are a sore spot for problems. If you bought one of my Power Supply rebuild kits, or one of my new boards, you probably need this. When the housing pins burn, the pins in the housings and the plastic housings themselves get burned too. This kit contains Trifurcon pins, which surrounds the pins on 3 sides, in two sizes for both wire sizes, (MUCH better than factory), new locking housings, and three key pins. Be aware of others selling with inferior parts!!

Includes:

(1) each 8 pin .156 locking housing for J1
(1) each 10 pin .156 locking housing for J2
(1) each 20 pin .156 locking housing for J3
(3) each Connector key pins for .156-inch housings
(20) each .156-inch Trifurcon crimp pins, 22-26AWG (AT)
(20) each .156-inch Trifurcon crimp pins, 18-20AWG (BT)

Game Listing:, All early Bally/Stern games with a -18 or TA-100 power supply assembly.

Bally -49 Power Supply Kit

25.99

BD-BLY-49-PS-Kit

The VARO Dual Diodes originally used on the AS-2518-49 Rectifier Modules are no longer available, so this kit is actually the same kit as the AS-2518-18 kit except for the 2 extra high-current fuse clips and a third bridge. By retrofitting a standard bridge in place of the two VARO dual-diodes you can easily replace the VARO duals with a much better MODERN bridge rectifier. Of course if there is nothing wrong with the controlled lamps on your machine, then you may just want to leave the dual diodes along and keep the extra bridge rectifier as a spare. This kit provides all the parts you need except the fuses and headers to rebuild your Bally AS-2518-49 Rectifier Board assembly. Please note that the bridges are mounted on the front. Fuses, headers and housings are available below.

Includes:

(4) each IN4007 Diode
(3) each Bridge Rectifiers w/ Wires (minimum 200V 35A)
(1) each Heat Sink w/Mounting Hardware and heat sink grease(for BR1)
(1) each 100 Volt MOV
(1) each 25-27 Ohm, 5 Watt Resistor
(1) each 600-620 Ohm, 10 Watt Resistor
(1) each 100K Ohm, 1/4 Watt Resistor
(4) each High Current Fuse Clips (for F5)
(8) each Low Current Fuse Clips for all others

Game Listing:, Future Spa, KISS, Space Invaders

Bally -49 Power Supply Fuse Kit

4.99

BD-BLY-49-PS-Fuse-Kit

This kit provides 1 set of fuses found on the Bally AS-2518-49 power supply (rectifier) board. It does not include any under-playfield fuses, nor does it include the fuse located on the regulator/solenoid driver board. These fuses are all brand new quality Bussman/Cooper or Littelfuse fuses.

Includes:

(2) each 20 Amp fast blow fuses for F1 & F5
(1) each 3/4 Amp fast blow fuse for F2
(1) each 4 Amp fast blow fuse for F3
(1) each 5 Amp fast blow fuse for F4
(1) each 3 Amp slow blow fuse for F6

Game Listing:, All early Bally games with a -49 power supply assembly.

Bally -49 Headers

2.99

BD-BLY-49-Headers

These are the three headers on a Bally AS-2518-49 power supply (rectifier) board. Since some people stock their own headers or purchase a new board, these are offered seperately.

Includes:

(1) each 9 pin .156 header for J1
(1) each 10 pin .156 header for J2
(1) each 20 pin .156 header for J3

Game Listing:, Future Spa, KISS, Space Invaders

Bally -49 Power Supply Connector Kit

11.99

BD-BLY-49-Power-Supply-Conn-Kit

This is a kit with everything you need to repair the connector housings going to a Bally AS-2518-49. These Bally games are all over 30 years old, and the power supply and it's connectors are a sore spot for problems. If you bought one of my Power Supply rebuild kits, or one of my new boards, you probably need this. When the housing pins burn, the pins in the housings and the plastic housings themselves get burned too. This kit contains Trifurcon pins, which surrounds the pins on 3 sides, in two sizes for both wire sizes, (MUCH better than factory), new locking housings, and three key pins. Be aware of others selling with inferior parts!!

Includes:

(1) each 9 pin .156 locking housing for J1
(1) each 10 pin .156 locking housing for J2
(1) each 20 pin .156 locking housing for J3
(3) each Connector key pins for .156-inch housings
(20) each .156-inch Trifurcon crimp pins, 22-26AWG (AT)
(20) each .156-inch Trifurcon crimp pins, 18-20AWG (BT)

Game Listing:, Future Spa, KISS, Space Invaders

Bally/Stern Regulator Capacitor Kit

17.99

BD-BLY-SDB-Cap-Kit

Replacement capacitors for the 5V & HV sections of the Bally/Stern Solenoid driver board. Electrolytic caps dry out and it's commonly accepted they have a 20 to 30 year life span. Some caps observed were made in the late 1970s, that's over 40 years. Symptoms they need replaced include not booting, reboots, locking up among others. Visual symptoms include bulging or leaking capacitors. Values are proven acceptable, Bally/Stern varied the 5V regulator from 12,000uf to 30,000uf.

Includes:

(1) each 15,000uF, 25 Volt Radial Electrolytic Capacitor
(1) each 150uF, 400 Volt Axial Electrolytic Capacitor
(4) each Zip Ties

Game Listing:, All early Bally/Stern games with a Solenoid Driver board.

Bally/Stern Regulator Capacitor Kit Economy version

13.99

BD-BLY-SDB-Cap-Economy-Kit

Bally/Stern Regulator Capacitor Kit Economy version

Save a few bucks by using a cheaper radial cap for the HV section. You will need to be creative mounting with a bit of wire for the 150uf cap. Replacement capacitors for the 5V & HV sections of the Bally/Stern Solenoid driver board. Electrolytic caps dry out and it's commonly accepted they have a 20 to 30 year life span. Some caps observed were made in the late 1970s, that's over 40 years. Symptoms they need replaced include not booting, reboots, locking up among others. Visual symptoms include bulging or leaking capacitors. Values are proven acceptable, Bally/Stern varied the 5V regulator from 12,000uf to 30,000uf.

Includes:

(1) each 15,000uF, 25 Volt Radial Electrolytic Capacitor
(1) each 150uF, 350 Volt Radial Electrolytic Capacitor
(3) each Zip Ties

Game Listing:, All early Bally/Stern games with a Solenoid Driver board.

Bally/Stern High Voltage Regulator Kit #1

32.99

BD-BLY-SDB-HV-Kit1

Bally/Stern High Voltage Regulator Kit #1

Provides all of the parts (less fuse) you need to rebuild the high voltage regulator section of a Bally Solenoid/Regulator Board, AS-2518-22, or Stern SDBXX Ver. X (See pics. signs are a fuse, and only 1 1N4004 (CR21). If yours does not look like this you might need the High Voltage Kit #2 kit below.

Includes:

(1) each 150uF, 350VDC Electrolytic Capacitor
(2) each 2N3440 Transistor
(1) each 2N3584 Transistor
(2) each 0.01uF 630V Metal-Polyester Capacitor
(1) each Z4KE140A Zener Diode (1N5275A equivalent)
(1) each 1N4007 Rectifier
(1) each 390 Ohm, 1/4 Watt Resistor
(1) each 1.2K Ohm, 1/4 Watt Resistor
(1) each 8.2K Ohm, 1/4 Watt Resistor
(1) each 22K Ohm, 1/2 Watt Resistor
(1) each 82K Ohm, 1/2 Watt Resistor
(1) each 100K Ohm, 1 Watt Resistor
(1) each 25K Ohm, 1/2 Watt Trimmer Pot
(1) each Thermally Conductive Insulator for TO-66 Devices
(2) each Nylon Wire Ties to strap down the capacitor

Game Listing:, All early Bally/Stern games with a Solenoid Driver board.

Bally/Stern High Voltage Regulator Economy Kit #1

26.99

BD-BLY-SDB-HV-Economy-Kit1

Bally/Stern High Voltage Regulator Economy Kit #1

Provides all of the parts (less fuse) you need to rebuild the high voltage regulator section of a Bally Solenoid/Regulator Board, AS-2518-22, or Stern SDBXX Ver. X (See pics. signs are a fuse, and only 1 1N4004 (CR21). If yours does not look like this you might need the High Voltage Kit #2 kit below. This economy kit includes a TO220 replacement voltage regulator and instructions to install can be found below.

Includes:

(1) each 150uF, 350VDC Electrolytic Capacitor
(2) each 2N3440 Transistor
(1) each BUX85 (sub for 2N3584 Transistor)
(2) each 0.01uF 630V Metal-Polyester Capacitor
(1) each Z4KE140A Zener Diode (1N5275A equivalent)
(1) each 1N4007 Rectifier
(1) each 390 Ohm, 1/4 Watt Resistor
(1) each 1.2K Ohm, 1/4 Watt Resistor
(1) each 8.2K Ohm, 1/4 Watt Resistor
(1) each 22K Ohm, 1/2 Watt Resistor
(1) each 82K Ohm, 1/2 Watt Resistor
(1) each 100K Ohm, 1 Watt Resistor
(1) each 25K Ohm, 1/2 Watt Trimmer Pot
(1) each Thermally Conductive Insulator for TO-66 Devices
(2) each Nylon Wire Ties to strap down the capacitor

Game Listing:, All early Bally/Stern games with a Solenoid Driver board.

Stern High Voltage Regulator Kit #2

33.99

BD-STN-SDB-HV-Kit2

Provides all of the parts you need to rebuild the high voltage regulator section of a Stern Solenoid/Regulator Board SDBXX Ver. X (See pics. Signs are no fuse, an extra transistor Q24, and two 1N4004 diodes at CR21 and CR22. If yours does not look like this you might need the High Voltage Kit #1 kit above.

Includes:

(1) each 150uF, 350VDC Electrolytic Capacitor
(2) each 2N3440 Transistor
(1) each BUX85 (sub for 2N3584 Transistor)
(1) each 2N3904 Transistor
(2) each 0.01uF 630V Metal-Polyester Capacitor
(1) each Z4KE140A Zener Diode (1N5275A equivalent)
(1) each 1N4007 Rectifier
(1) each 3.3 Ohm, 1/4 Watt Resistor
(1) each 390 Ohm, 1/4 Watt Resistor
(1) each 470 Ohm, 1/4 Watt Resistor
(1) each 1.2K Ohm, 1/4 Watt Resistor
(1) each 2.4K Ohm, 1/4 Watt Resistor
(1) each 8.2K Ohm, 1/4 Watt Resistor
(1) each 82K Ohm, 1/2 Watt Resistor
(2) each 100K Ohm, 1 Watt Resistor
(1) each 25K Ohm, 1/2 Watt Trimmer Pot
(1) each Thermally Conductive Insulator for TO-66 Devices
(2) each Nylon Wire Ties to strap down the capacitor

Game Listing:, Early Stern games with a Solenoid Driver board.

Stern High Voltage Regulator Economy Kit #2

27.99

BD-STN-SDB-HV-Kit2

Stern High Voltage Regulator Economy Kit #2

Provides all of the parts you need to rebuild the high voltage regulator section of a Stern Solenoid/Regulator Board SDBXX Ver. X (See pics. Signs are no fuse, an extra transistor Q24, and two 1N4004 diodes at CR21 and CR22. If yours does not look like this you might need the High Voltage Kit #1 kit above. This economy kit includes a TO220 replacement voltage regulator and instructions to install can be found below.

Includes:

(1) each 150uF, 350VDC Electrolytic Capacitor
(2) each 2N3440 Transistor
(1) each 2N3584 Transistor
(1) each 2N3904 Transistor
(2) each 0.01uF 630V Metal-Polyester Capacitor
(1) each Z4KE140A Zener Diode (1N5275A equivalent)
(1) each 1N4007 Rectifier
(1) each 3.3 Ohm, 1/4 Watt Resistor
(1) each 390 Ohm, 1/4 Watt Resistor
(1) each 470 Ohm, 1/4 Watt Resistor
(1) each 1.2K Ohm, 1/4 Watt Resistor
(1) each 2.4K Ohm, 1/4 Watt Resistor
(1) each 8.2K Ohm, 1/4 Watt Resistor
(1) each 82K Ohm, 1/2 Watt Resistor
(2) each 100K Ohm, 1 Watt Resistor
(1) each 25K Ohm, 1/2 Watt Trimmer Pot
(1) each Thermally Conductive Insulator for TO-66 Devices
(2) each Nylon Wire Ties to strap down the capacitor

Game Listing:, Early Stern games with a Solenoid Driver board.

Bally/Stern Solenoid Driver Kit

10.99

BD-BLY-Solenoid-Driver-Kit

Includes all the parts needed (less integrated circuits) to repair up to 10 solenoid driver circuits on your Bally AS-2518-22 or AS-2518-16, or Stern SDU-100 Solenoid Driver/Voltage Regulator Module (all versions) simply known as the Solenoid Driver board. Will also work for the Lamp/Solenoid Combo Board AS-2518-107. Includes 10 extra 1N4004 rectifiers just in case you need extras for the solenoid coils.

Includes:

(10) each TIP102 Driver Transistors
(20) each 1N4007 Diodes
(10) each 330 Ohm, 1/4 Watt Resistors
(10) each 0.002 uF, 3000 Volt Disk Capacitor

Game Listing:, All early Bally/Stern games with a Solenoid Driver board.

Bally/Stern Solenoid Driver IC Kit

17.99

BD-BLY-Solenoid-Driver-IC-Kit

Includes the decoder and transistor array integrated circuits (and sockets) used on Bally AS-2518-22 or AS-2518-16, or Stern SDU-100 Solenoid Driver/Voltage Regulator Module (all versions) simply known as the Solenoid Driver board.

Includes:

(1) each 74154 4-to-16 Decoder IC
(3) each 3081 Transistor Array IC
(1) each 24 Pin Socket
(3) each 16 Pin Socket

Game Listing:, All early Bally/Stern games with a Solenoid Driver board.

Bally/Stern Solenoid Driver Board Connector Kit

19.99

BD-BLY-SDB-Conn-Kit

Bally/Stern Solenoid Driver Board Connector Kit

Includes housings, crimp pins and keys used on Bally AS-2518-22 or AS-2518-16, or Stern SDU-100 Solenoid Driver/Voltage Regulator Module (all versions) simply known as the Solenoid Driver board.

Includes:

(1) each 9 pin .156 housing for J1
(2) each 15 pin .156 housing for J2 and J5
(1) each 25 pin .100 housing for J3
(1) each 12 pin .100 housing for J4
(3) each Connector key pins for .156-inch housings
(2) each Connector key pins for .100-inch housings
(10) each .156-inch Trifurcon crimp pins, 22-26AWG (AT)
(30) each .156-inch Trifurcon crimp pins, 18-20AWG (BT)
(40) each .100-inch crimp pins, 22-30 AWG

Game Listing:, All early Bally/Stern games with a Solenoid Driver board.

Bally/Stern Solenoid Driver Board Headers

6.99

BD-BLY-SDB-HEADERS

Bally/Stern Solenoid Driver Board Header Kit

Includes all the headers used on Bally AS-2518-22 or AS-2518-16, or Stern SDU-100 Solenoid Driver/Voltage Regulator Module (all versions) simply known as the Solenoid Driver board.

Includes:

(1) each 9 pin .156 header for J1
(2) each 15 pin .156 header for J2 and J5
(1) each 25 pin .100 header for J3
(1) each 12 pin .100 header for J4

Game Listing:, All early Bally/Stern games with a Solenoid Driver board.

Bally AS-2518-32 or AS-2518-50 Pinball Deluxe Sound Board repair kit

19.95

Bally-AS-2518-32/50 Deluxe Kit

After many years of fixing dozens of sound boards, I've compiled a kit that will fix most board problems that are not IC or Amplifier related. The main difference between a -32 and a -50 board are the addition of a capacitor and the sound ROM itself. Since they are swapped around often, this kit contains the extra cap not needed on -32 boards. Note: This kit often fixes weak or no sound, crackling static sound, boot issues and intermittent sound. If you have a sound that never changes, good chance it's the sound ROM itself and this kit will not fix. Tons of -32/-50 sound boards have been brought back to life with this kit, from silence problems to scracty audio. Includes:

(3) each 1uf/25V Axial capacitors for C8, C11 and C23
(1) each 2.2uf/25V Axial capacitor for C6
(1) each 100uf/25V Axial capacitor for C13
(1) each 100uf/100V Axial capacitor for C17
(1) each 2 pin header for J2 speaker output
(1) each 4 pin and 9 pin header for J1
(1) each 1N4007 better sub for CR3 (Note 1)
(1) each 1N4743 better sub for CR4
(2) each 10K VOLUME and SUSTAIN potentiometers
(1) each 4.7K ohm 1 watt metal oxide resistor for R22
(1) each 75 ohm 5 watt cement resistor for R36 (Note 2)
(1) each TIP102 better sub for TIP29 for Q1

Game Listing:, Lost World, Six Million Dollar Man, Playboy, Supersonic, Star Trek, Kiss, Voltan, Paragon, Harlem Globetrotters, Dolly Parton

Bally AS-2518-61 Squawk & Talk Module Capacitor Kit

22.95

BD-BLY-Squawk & Talk Kit

Here's a nice set of high quality capacitors which you can use to replace all the electrolytics and tantalums on your AS-2518-61 Squawk & Talk. Some of these capacitors are rated at a higher voltage than original. Tons of S&T boards have been brought back to life with this kit, from silence problems to scracty audio. Includes:

7 ea. 1uF 50V Axial Electrolytic Capacitor (C19, C24, C25, C28, C31, C34, C42)
2 ea. 2.2 50V Axial Electrolytic Capacitor (C36 & C43)
1 ea. 10uF 50V Axial Electrolytic Capacitor (C15)
1 ea. 47uF 25V Axial Electrolytic Capacitor (C1)
2 ea. 330uF 50V Axial Electrolytic Capacitor (C37 & C38)
1 ea. 470uF 25V Axial Electrolytic Capacitor (C29)
1 ea. 1000uF 25V Axial Electrolytic Capacitor (C27)
1 ea. 4700uF 35V Axial Electrolytic Capacitor (C14)
2 ea. 4.7uF 25V Dipped Tantalum Capacitor (C16 & C22) (Note markings on one side show a small "+" sign)
2 ea. 1K Volume trimmer pots

Game Listing:, Flash Gordon, Eight Ball Deluxe/LE, Fireball II, Embryon, Fathom, Medusa, Centaur/II, (with Say it Again reverb card), Elektra, Vector, Spectrum, Mr. & Mrs. Pacman, Midnight Marauders (non pinball)

Bally Flipper Rebuild Kit - 1975 to 1980

59.95

Bally Flipper Rebuild Kit - 1975 to 1980

Classic Bally flipper rebuild kit for games 1975 to 1980. This kit replaces all the major parts on two flipper assemblies.

Aladdin's Castle, Black Jack, Bow and Arrow,Captain Fantastic & The Brown Dirt Cowboy, Dolly Parton, Eight Ball, Evel Knievel, Fireball, Flip Flop, Freedom, Future Spa, Galaxy Ranger, Hang Glider, Harlem Globetrotters On Tour, Hi-Deal, Hokus Pokus, Kick Off, Kiss, Lost World, Mata Hari, Night Rider, Nitro Ground Shaker, Old Chicago, Paragon, Playboy, Power Play, Quarterback, Silverball Mania, Space Invaders, Sparkz, Spirit of '76, Star Trek, Strikes and Spares, Supersonic, The Six Million Dollar Man, Voltan Escapes Cosmic Doom

Bally Flipper Rebuild Kit - 1980 to 1988

59.95

Bally Flipper Rebuild Kit - 1980 to 1988

Classic flipper rebuild kit for Bally games 1980-1988. This kit replaces all the major parts of 1 left and 1 right flipper assembly on Bally pinball machines manufactured from Rolling Stones to Blackwater 100. Full kit rebuilds 1 left and 1 right flipper and contains all the parts shown in the picture above. If you need to add a 3rd left or right flipper, please contact me before ordering.

1980-05 Rolling Stones, 1980-06 Hotdoggin', 1980-06 Mystic, 1980-07 Viking, 1980-09 Skateball, 1980-11 Frontier, 1980-11 Xenon, 1981-02 Flash Gordon, 1981-04 Eight Ball Deluxe, 1981-06 Embryon, 1981-06 Fireball II, 1981-08 Fathom, 1981-09 Medusa, 1981-10 Centaur, 1981-12 Elektra, 1982-02 Vector, 1982-05 Mr. & Mrs. Pac-Man Pinball, 1982-08 Speakeasy, 1982-08 Speakeasy 4, 1982-08 Spectrum, 1982-10 Baby Pac-Man, 1982-10 Eight Ball Deluxe Limited Edition, 1982-11 BMX, 1983-03 Grand Slam, 1983-06 Centaur II, 1983-10 Gold Ball, 1984-01 Eight Ball Deluxe, 1984-02 X's & O's, 1984-03 Kings of Steel, 1984-07 Black Pyramid, 1984-10 Spy Hunter, 1985-02 Fireball Classic, 1985-05 Cybernaut, 1985-08 Eight Ball Champ, 1985-11 Beat the Clock, 1986-03 Lady Luck, 1986-06 Black Belt, 1986-06 Motordome, 1986-09 Special Force, 1986-11 Strange Science, 1987-03 City Slicker, 1987-04 Hardbody, 1987-05 Party Animal, 1987-08 Heavy Metal Meltdown, 1987-10 Dungeons & Dragons, 1988-01 Escape from the Lost World, 1988-03 Blackwater 100

Stern Flipper Rebuild Kit - 1977 to 1984

49.95

Stern Flipper Rebuild Kit - 1977 to 1984

Classic Stern flipper rebuild kit. This kit replaces both "type 1" and "type 2" flipper mechs. This kit replaces all the major parts on two flipper assemblies.

Stampede, Rawhide, Disco, Pinball, Stingray, Stars, Memory Lane, Lectronamo, Wild Fyre, Nugent, Dracula, Trident, Hot Hand, Cosmic Princess, Magic, Meteor, Galaxy, Ali, Big Game, Seawitch, Cheetah, Quicksilver, Star Gazer, Flight 2000, Nine Ball, Freefall, Lightning, Split Second, Catacomb, Iron Maiden, Viper, Cue, Hypnox, Dragonfist, Orbitor 1, Lazer Lord
